WiFi Starling - Hotspot 2.0 IPERA Configuration Guide

Hotspot 2.0 (Passpoint) is a technology that allows users to move seamlessly and securely between Wi-Fi networks, similar to how cellular roaming works. It eliminates the need for users to manually search for networks or re-enter passwords.

What is Hotspot 2.0 and the OSU Server?

Hotspot 2.0: Provides automatic authentication using WPA2/WPA3 security.

OSU (Online Sign-Up) Server: The server responsible for securely delivering the Passpoint profile to the device.

Why is it necessary?

Operating systems like iOS do not allow direct profile downloads due to security protocols. Instead, they redirect the user to an OSU URL, where the device fetches the provisioning configuration.

Configuration and Onboarding Settings

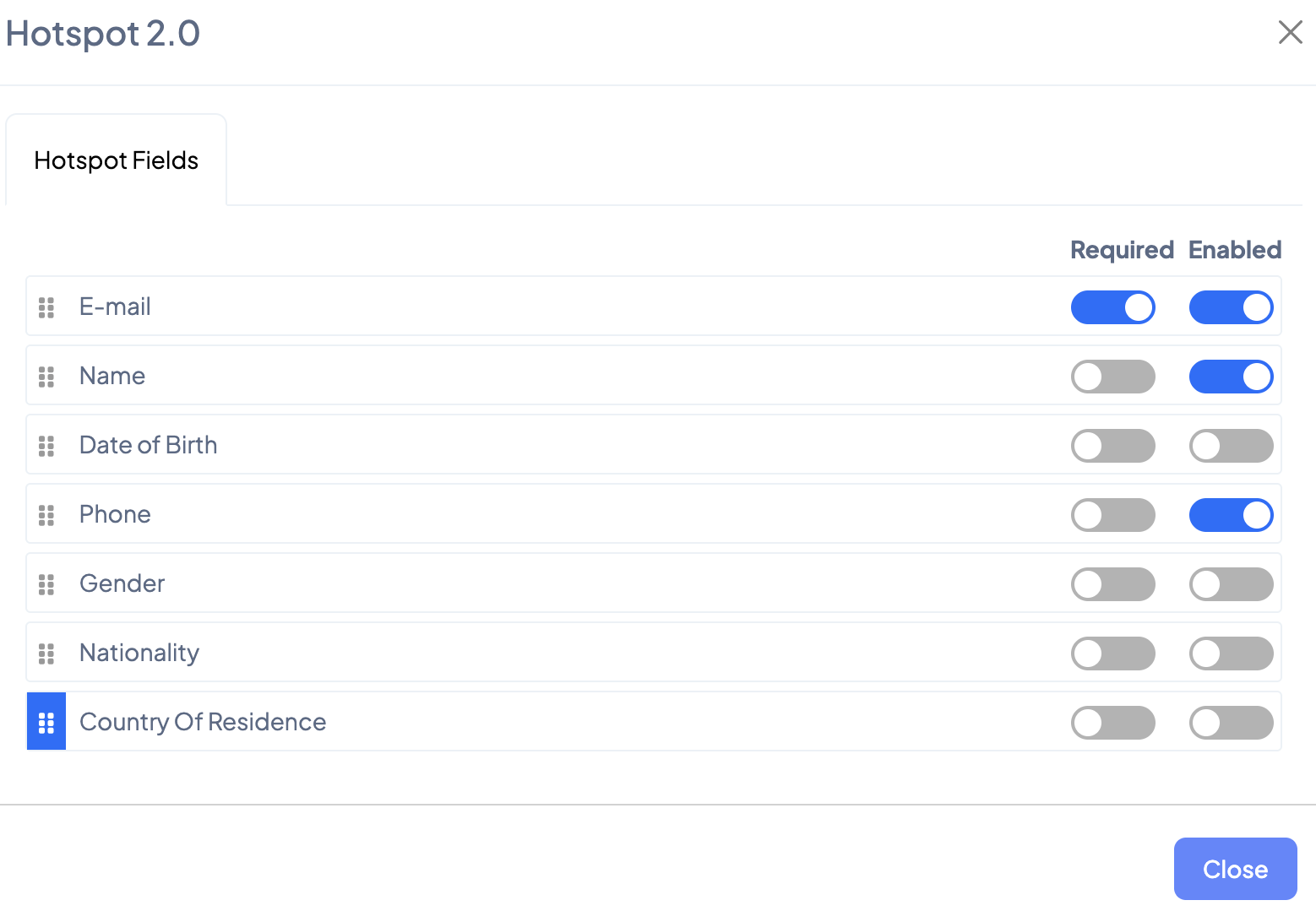

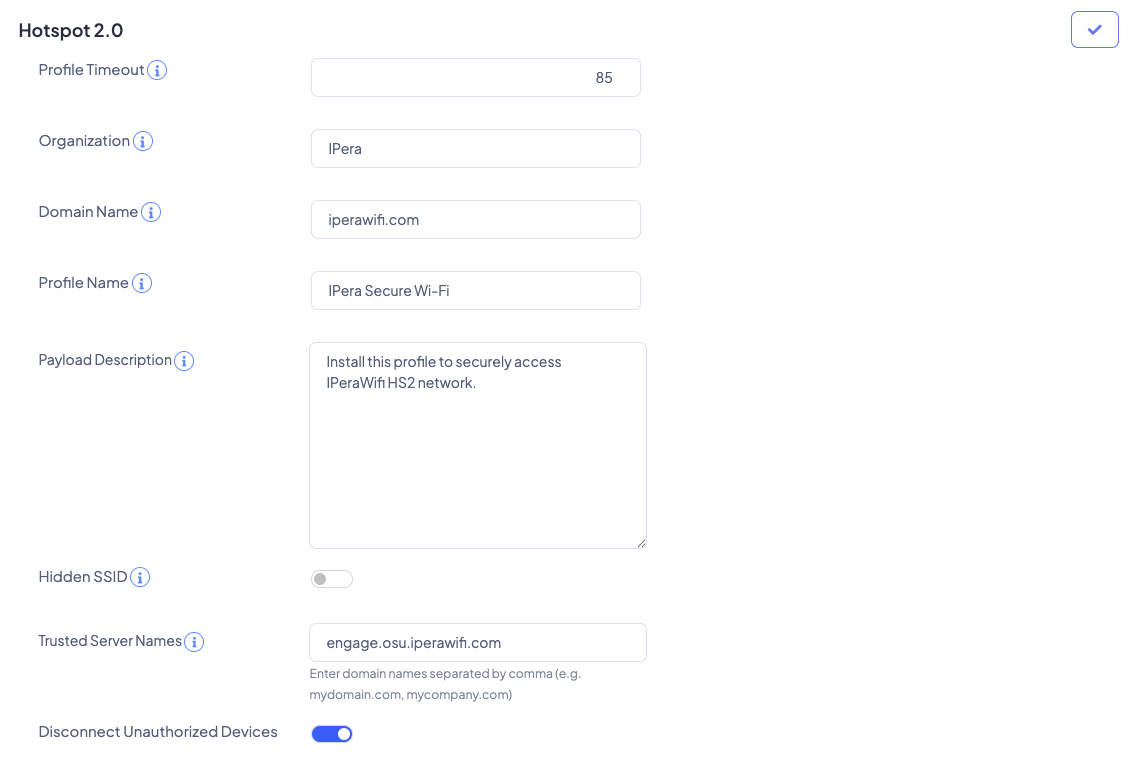

The fields in the System Settings > Onboarding > Hotspot 2.0 tab of the Starling Wi-Fi Dashboard are populated with settings from the defined SSID configuration.



01. WEB SDK

Splash Page and New Snippet Integration

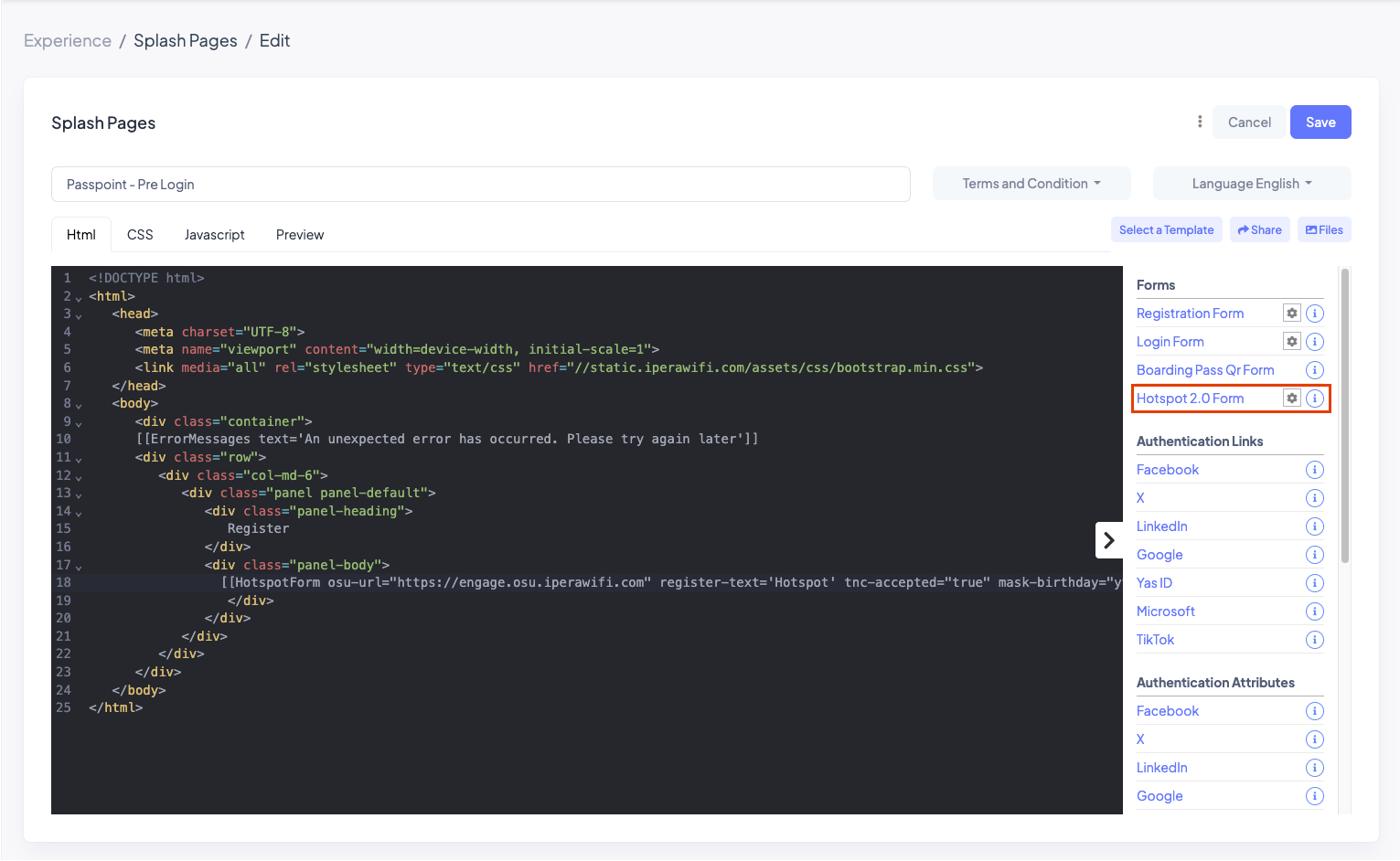

A new code snippet area has been added to the Splash Page for Hotspot 2.0 support.

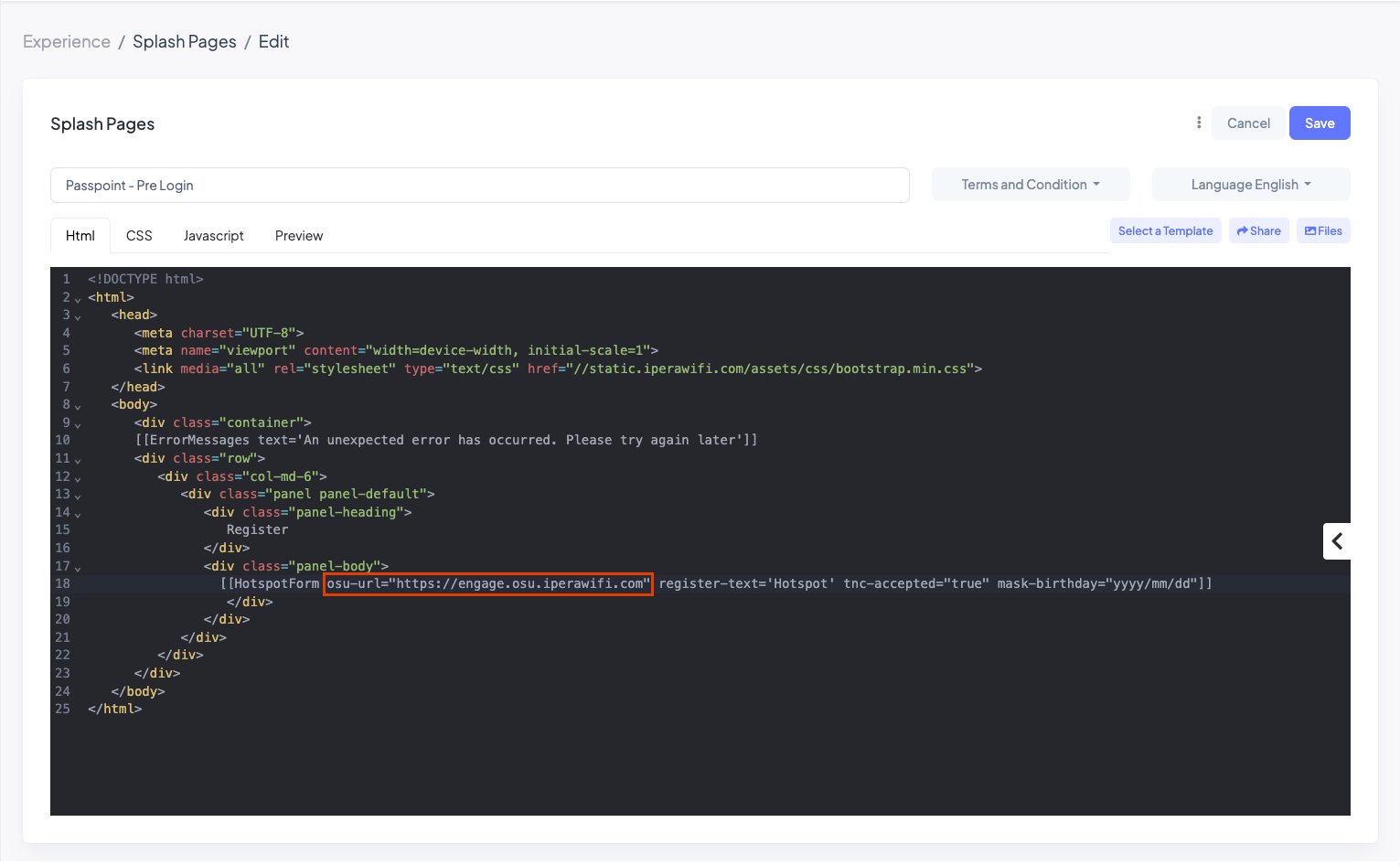

• OSU-URL Parameter: This snippet introduces the osu-url parameter.

• Default Value: If left blank, the system uses the default URL defined in the Splash Page settings.



Passpoint Configuration Guide

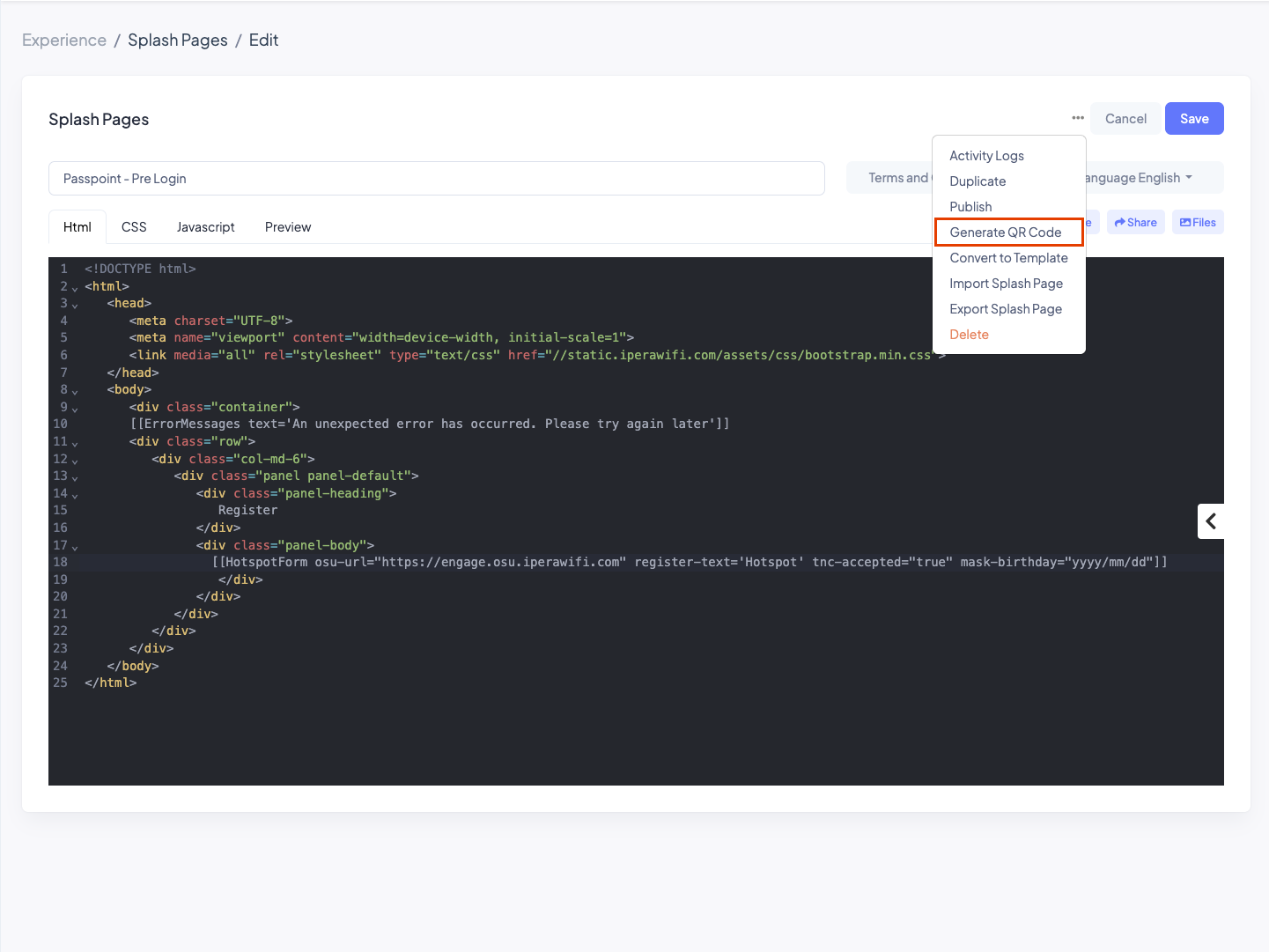

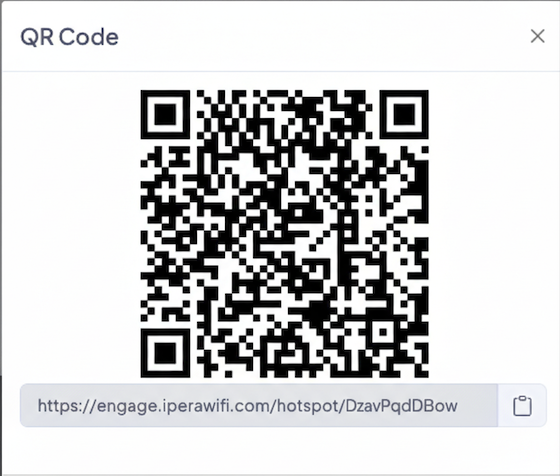

• Navigate to Experience > Splash Pages > Edit > Generate QR Codes

Step 1: Scan the QR code or copy url to open related registration form.

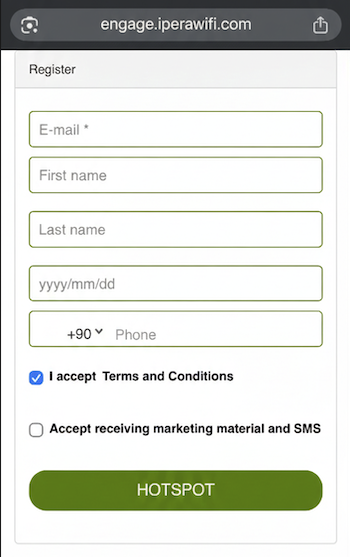

Step 2: Enter the user information into the registration form.



01. Android Mobile Demo Web SDK Environment Flow for Passpoint

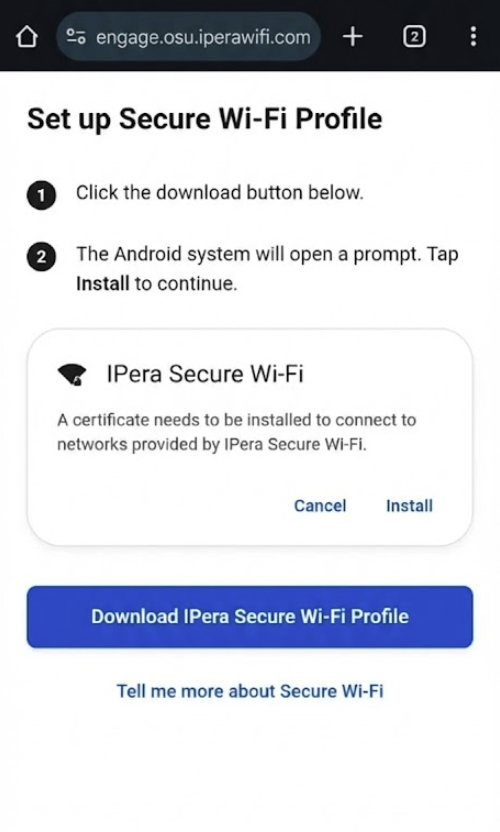

Step 3: On the following screen, click the "Download IPera Secure Wi-Fi Profile" button.

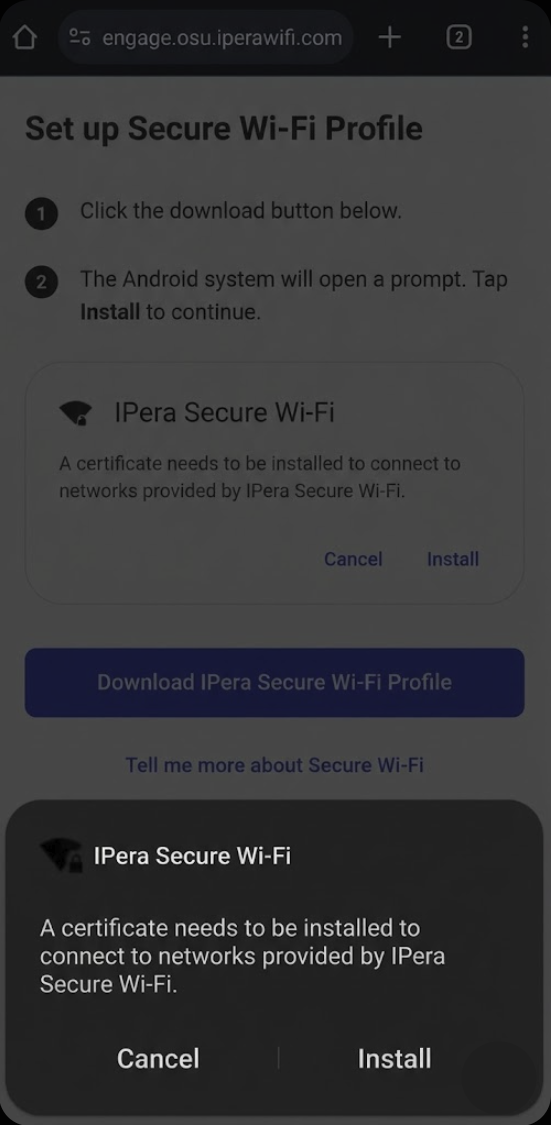

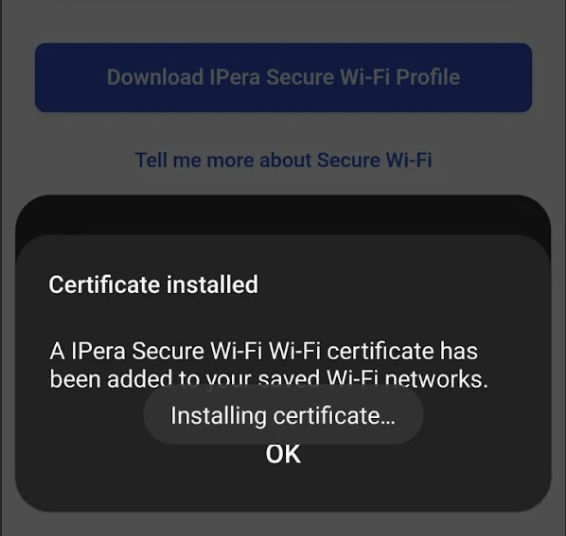

Step 4: Select "Install" to complete the certificate installation.

Step 5: Once the installation is complete, you can connect to the Hotspot 2.0 SSID.

02. iOS Mobile Demo Web SDK Environment Flow for Passpoint

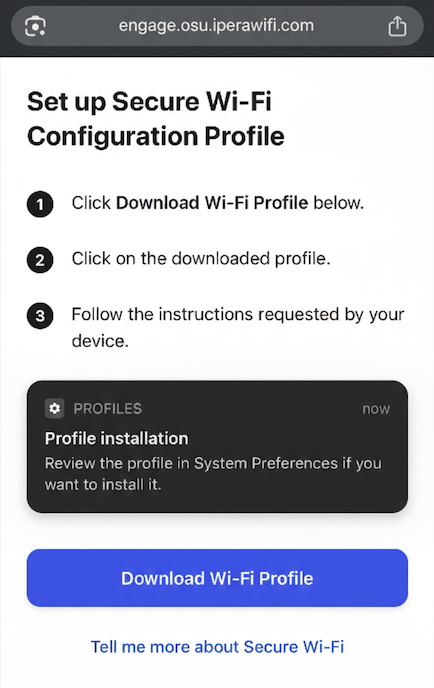

Step 3: On the following screen, click the "Download Wi-Fi Profile" button.

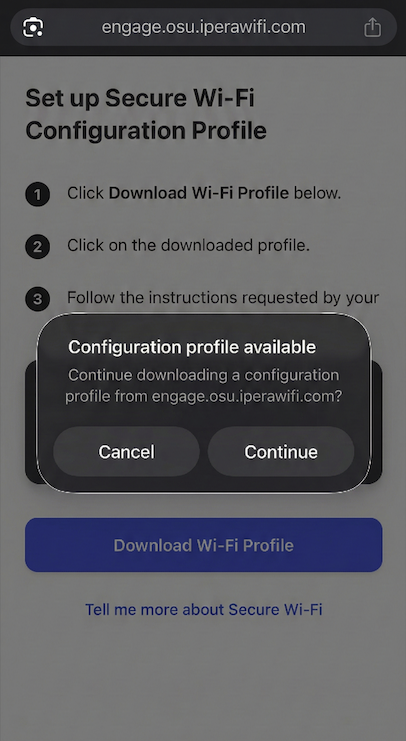

Step 4: When the "Configuration profile available" prompt appears, click "Continue" to proceed with the download.

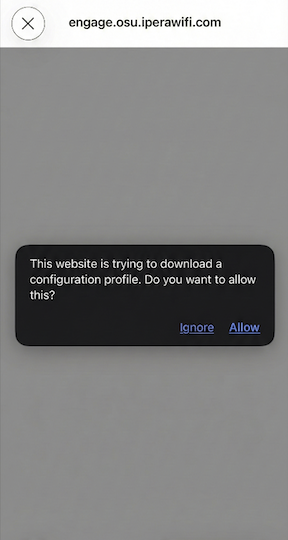

Step 5: When the system asks to allow the download, select "Allow".

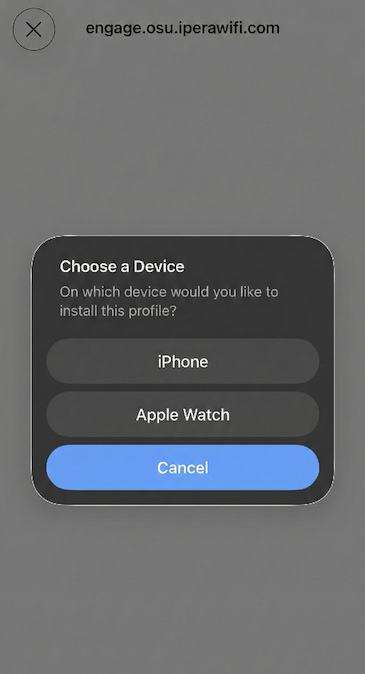

Step 6: Device Selection Choose the target device for the installation (e.g., "iPhone") from the "Choose a Device" menu.

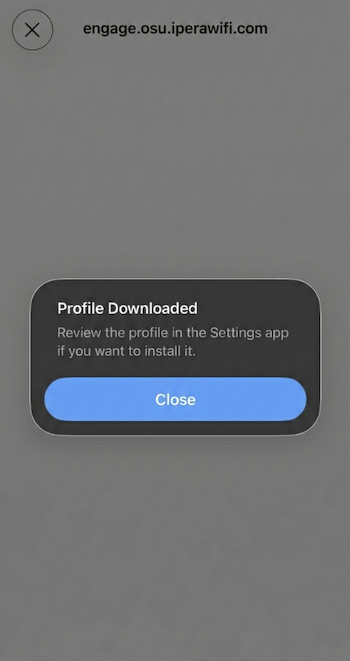

Step 7: Acknowledge the 'Profile Downloaded' notification by clicking 'Close' and proceed to the Settings menu.

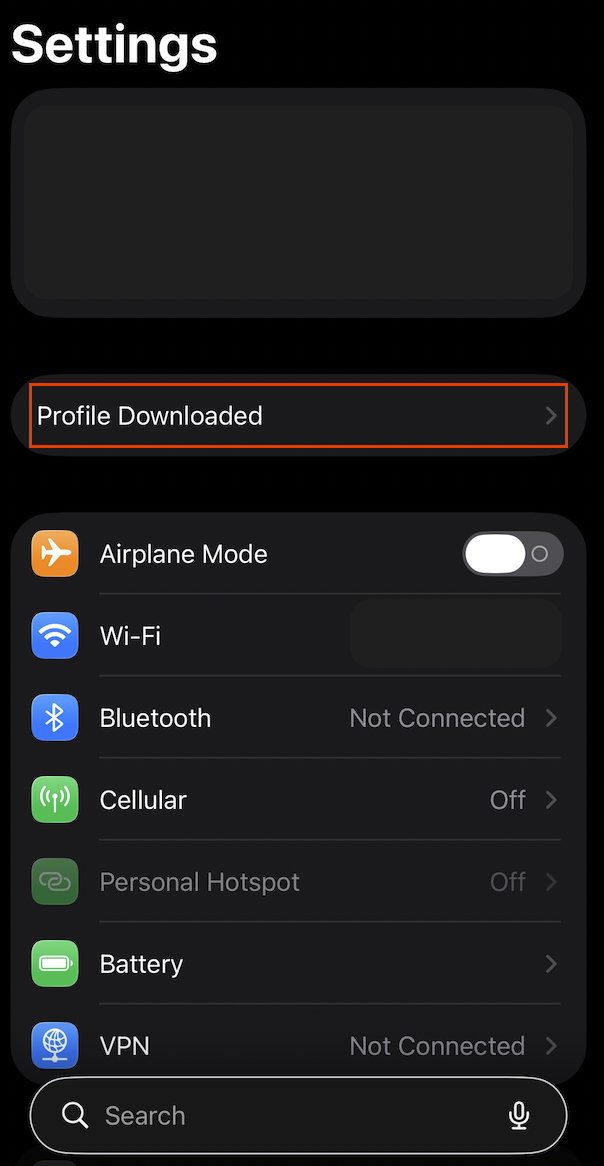

Step 8: Open your device's Settings app and tap on the 'Profile Downloaded' section at the top to initiate the final installation.

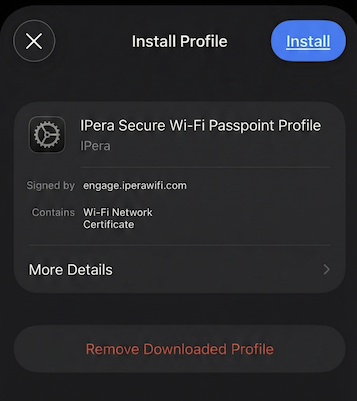

Step 9: Tap 'Install' to complete the configuration and enable secure Wi-Fi access.

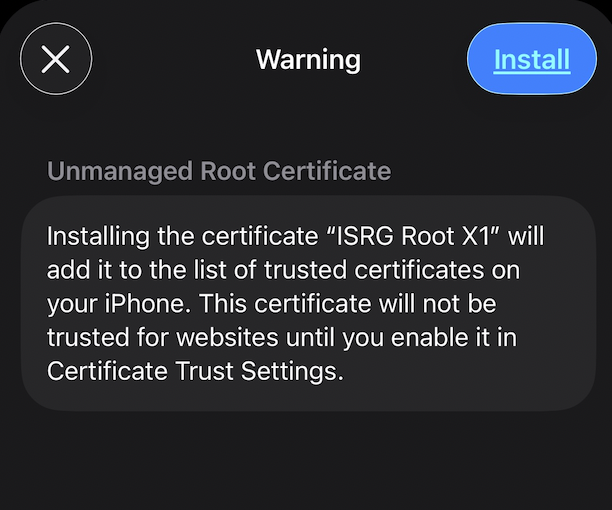

Step 10: Review the security warning and click 'Install' again to authorize the addition of the root certificate to your trusted certificates list.

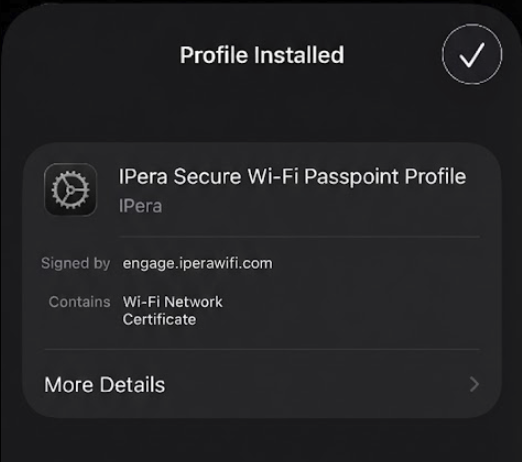

Step 11: Once the 'Profile Installed' confirmation appears, click 'Done' to complete the setup. Your device is now configured to connect automatically to secure Passpoint networks.

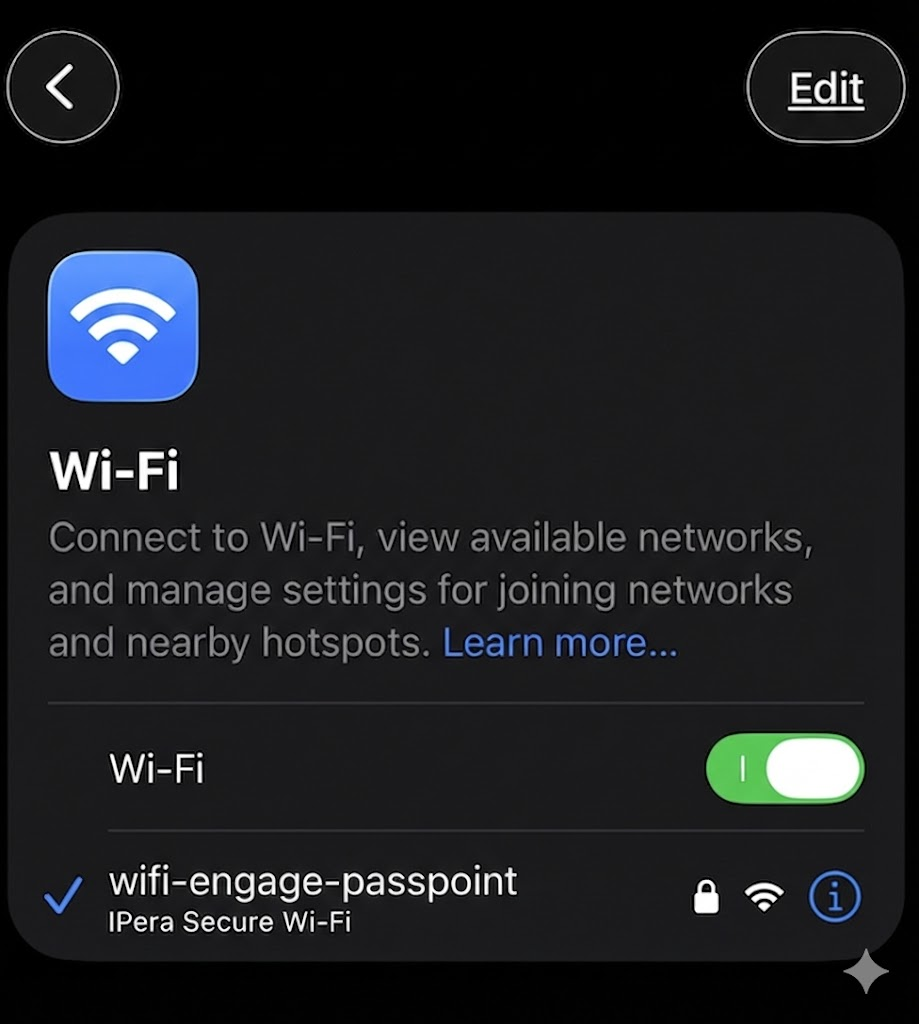

Step 12: Verify your connection to the secure Passpoint network in the Wi-Fi settings.

02. APP SDK

01. Android Mobile Demo App SDK Environment Flow for Passpoint

Android devices offer a more integrated experience with Passpoint.

• Key Feature:  Android can often download and install the Passpoint profile directly or with a single user prompt.

• User UI: Once the user initiates the flow, the profile is installed, and the device recognizes the network as a "Passpoint" network immediately.

• Follow the steps below.

Step 1: Complete Registration and Connect Fill in the required details (Full Name, Email Address, and Mobile Phone) on the registration screen.

Then, tap the "REGISTER & CONNECT" button to initiate the Passpoint profile installation process.

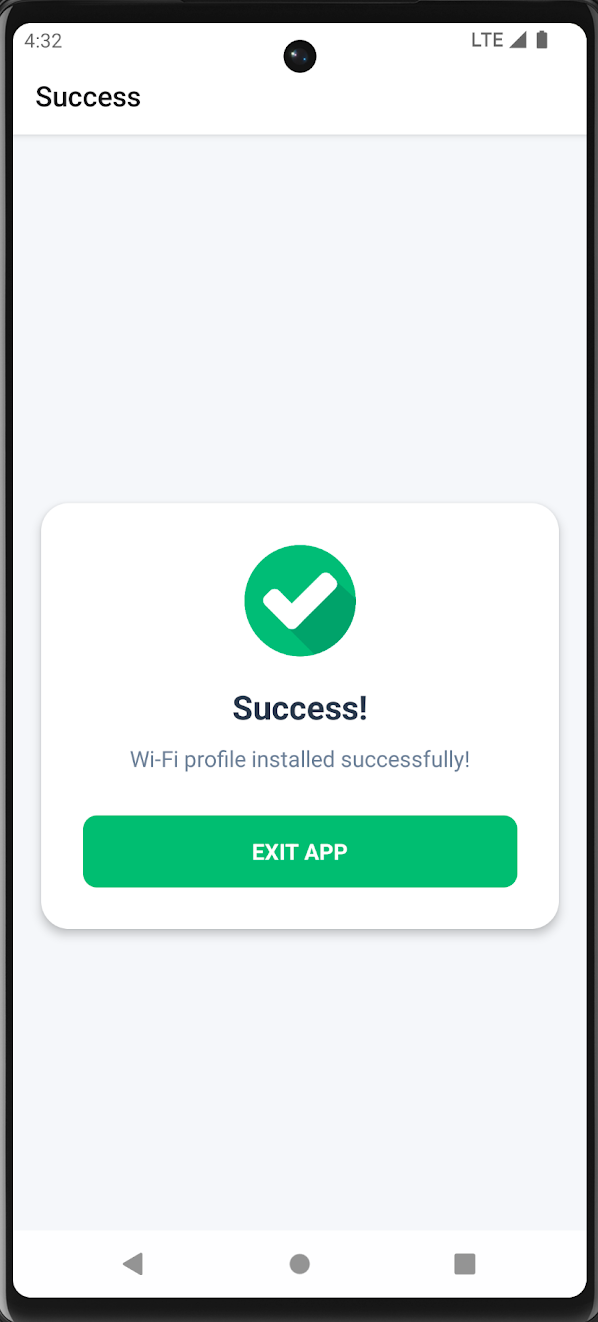

Step 2: After clicking register, your device will automatically download the secure Wi-Fi profile. This indicates your device is now configured for secure access. Tap "Exit App" to proceed.

Step 3: Navigate to your device's Wi-Fi settings. From the list of available networks, find and select the specific Passpoint-enabled network (e.g., IPera Guest WiFi Passpoint).

Your device will recognize the installed profile and connect automatically without requiring a manual password.



02. iOS Mobile Demo App SDK Environment Flow for Passpoint

• Follow the steps below.

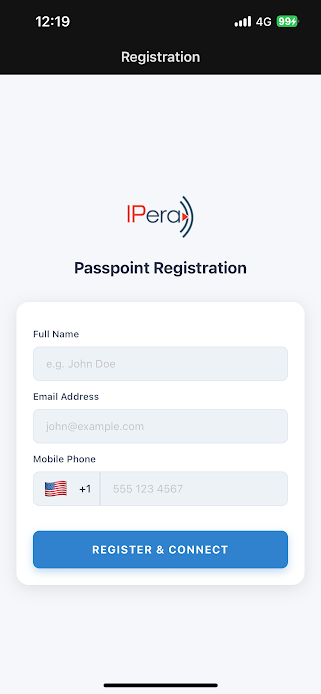

Step 1: Complete Registration and Connect Fill in the required details (Full Name, Email Address, and Mobile Phone) on the registration screen.

Then, tap the "REGISTER & CONNECT" button to initiate the Passpoint profile installation process.

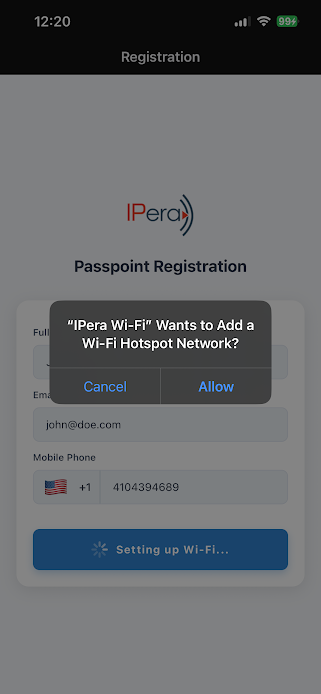

Step 2: On the following screen, select the "Allow" button to add the Hotspot network.

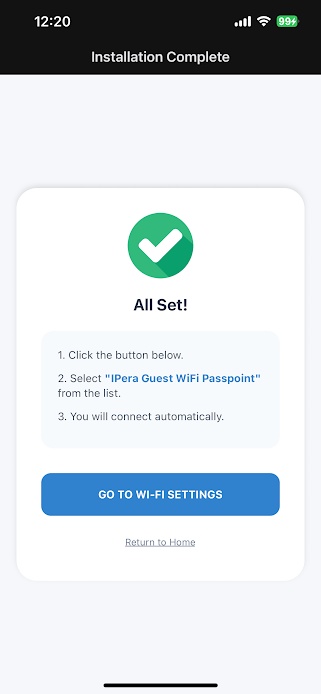

Step 3: After allowing you will get the installatinon complete page. This indicates your device is now configured for secure access. Tap "Go To Wi-Fi Settings" to proceed.

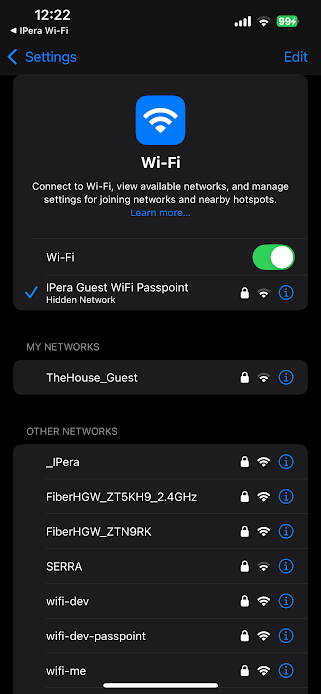

Step 4: From the list of available networks, find and select the specific Passpoint-enabled network (e.g., IPera Guest WiFi Passpoint).

Step 5: Your device will recognize the installed profile and connect automatically without requiring a manual password.
