This guide provides instructions on how to apply Quality of Service (QoS) configuration to an Aruba Controller. By following the steps outlined in this guide, network administrators will be able to prioritize and manage network traffic more effectively, ensuring optimal performance for critical applications.
Configuration Steps

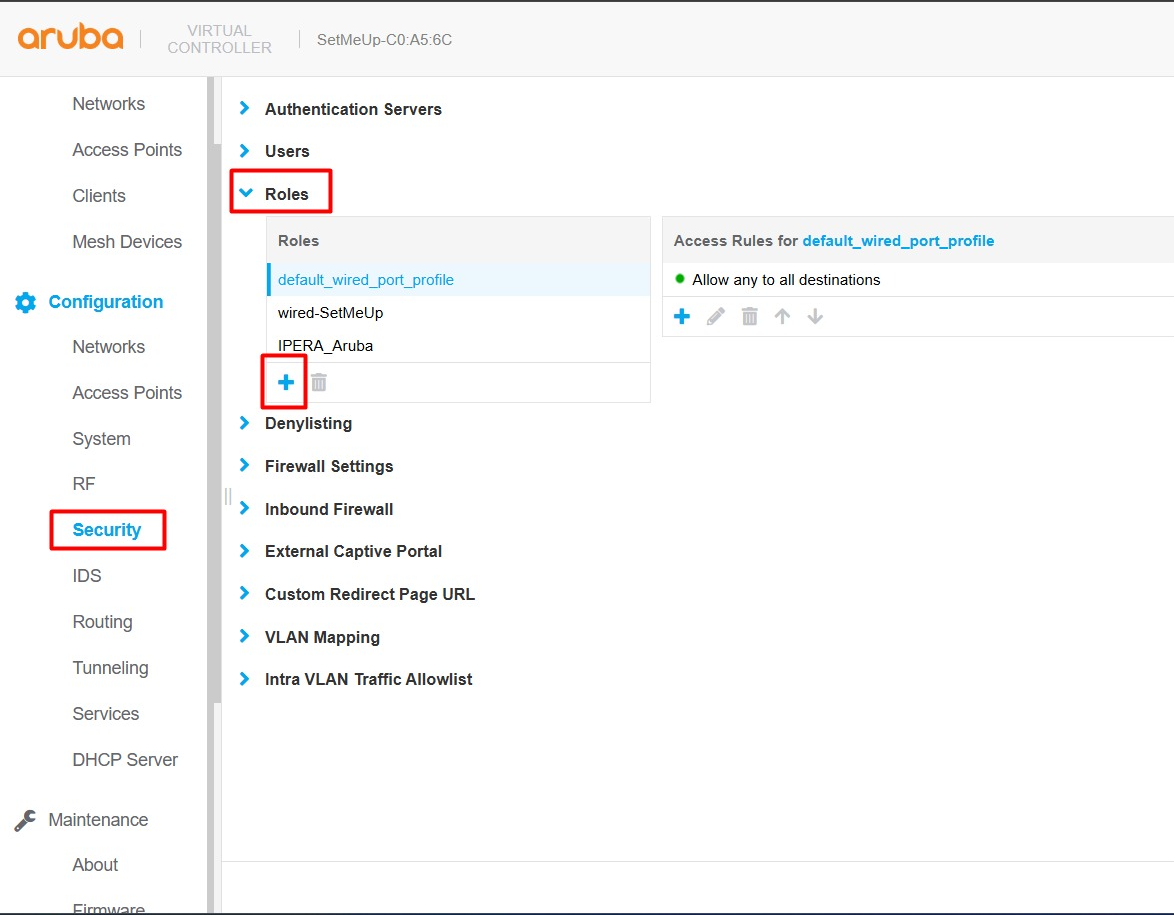

1. To add Roles, click on the Configuration > Security
2. Choose the Roles tab. Expand the Roles section, as below
3. Click + to add a new Role

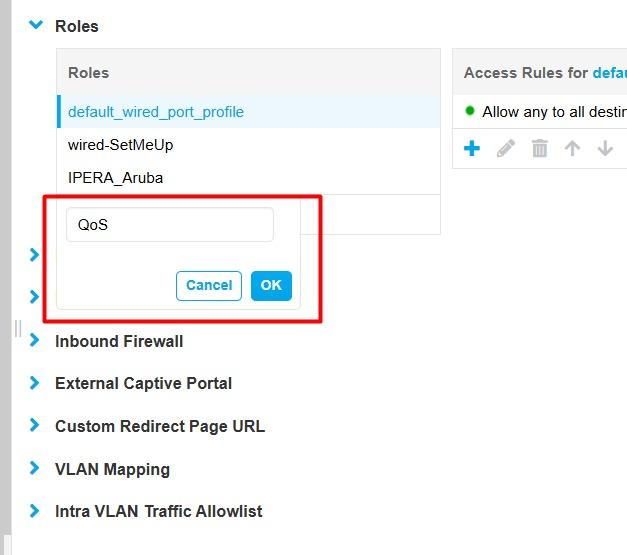

4. Type the name (in this case called "QoS") and click OK to save it

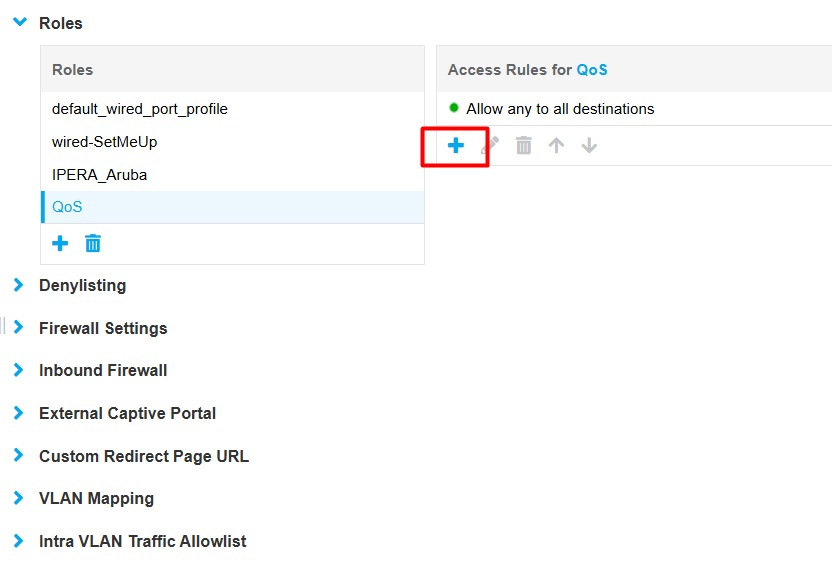

5. Create a Access Rule by clicking the + button under the "Access Rules for QoS"

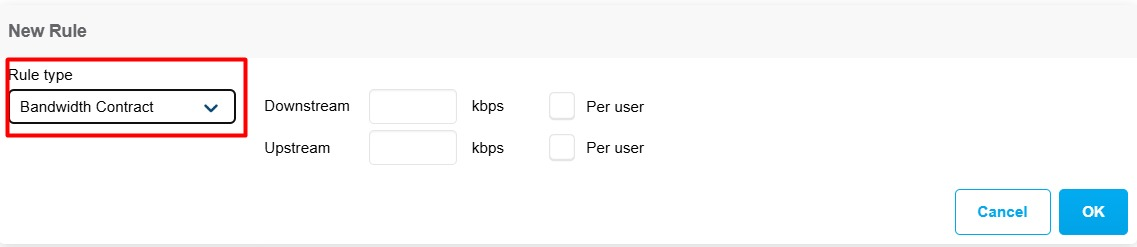

6. Navigate to "Rule type" tab and expand the section, then select the "Bandwidth Contract" and click OK
