IPERA Starling - Meraki Scanning API Integration

1. Enable Dashboard API Access

a. Login to Meraki Cloud

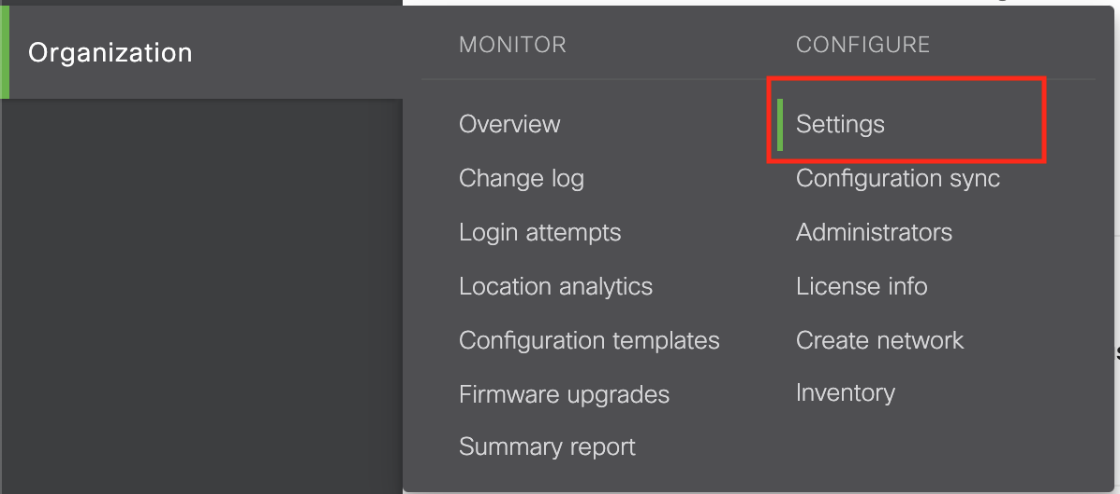

b. Click the Organization > Settings menu

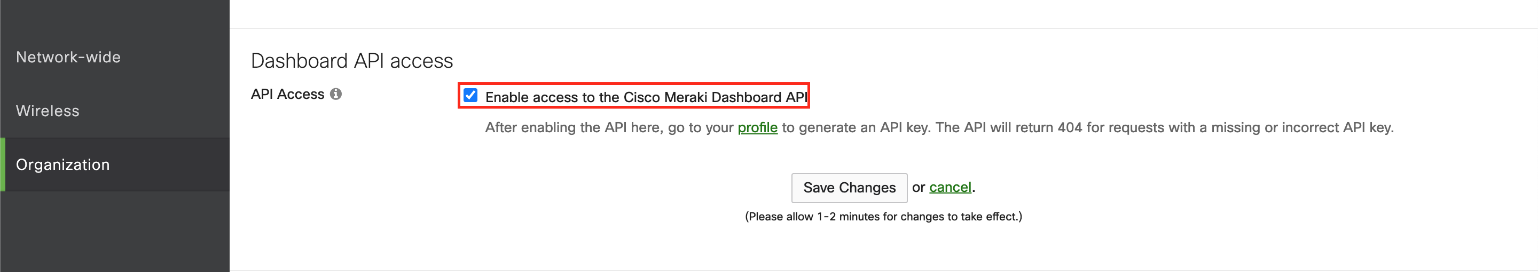

c. Tick "Enable access to the Cisco Meraki Dashboard API" checkbox and click the Save Changes button below

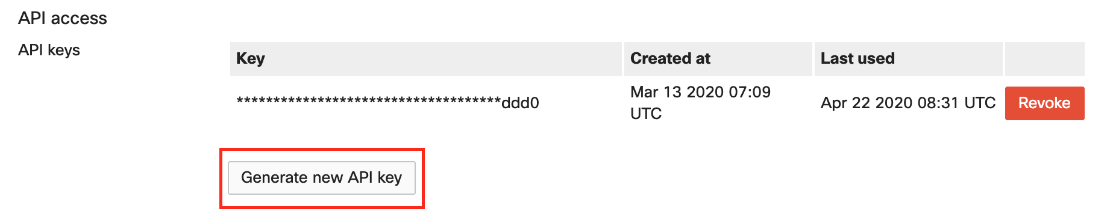

d. Click the "profile" link below the checkbox to visit the user profile page. Scroll down to "API access" section and click Generate new API key button

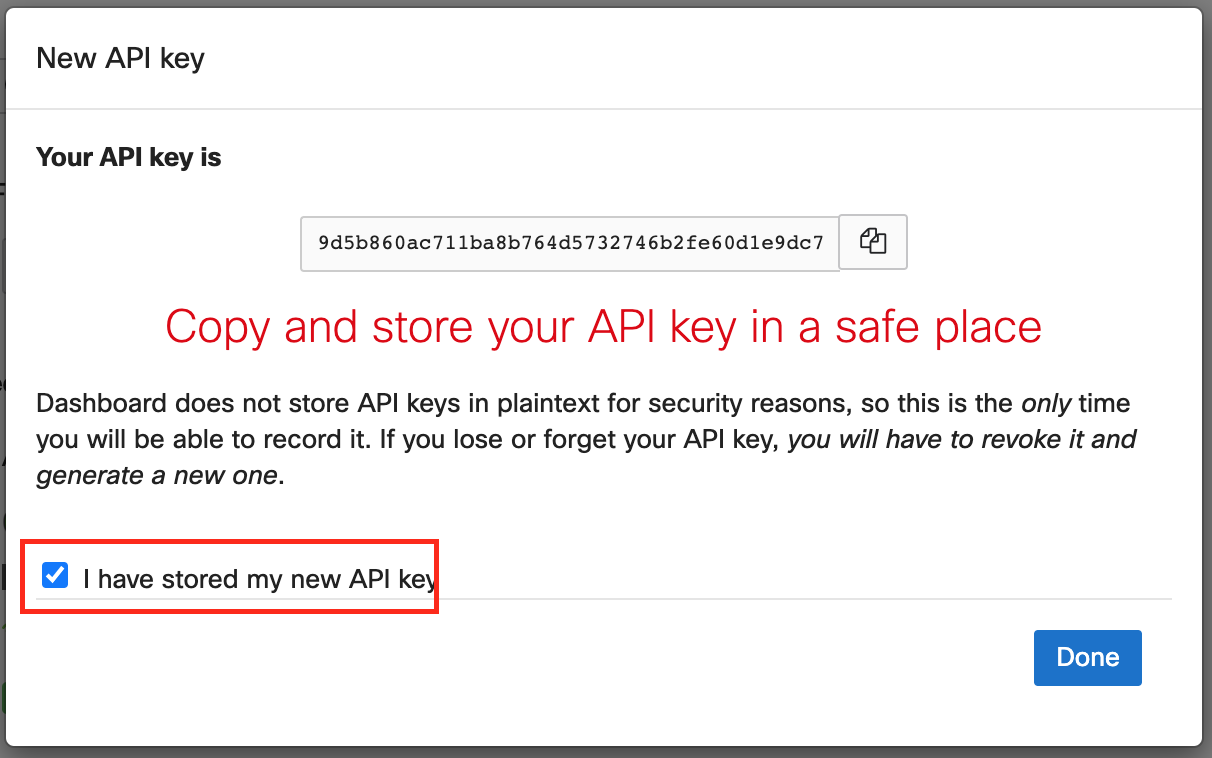

e. Copy and store the API key. This is the only time the API key is displayed. If you lose or forget the API key you have to generate a new one.

Then tick "I have stored my new API key" checkbox and click Done button

2. Enable Location Scanning

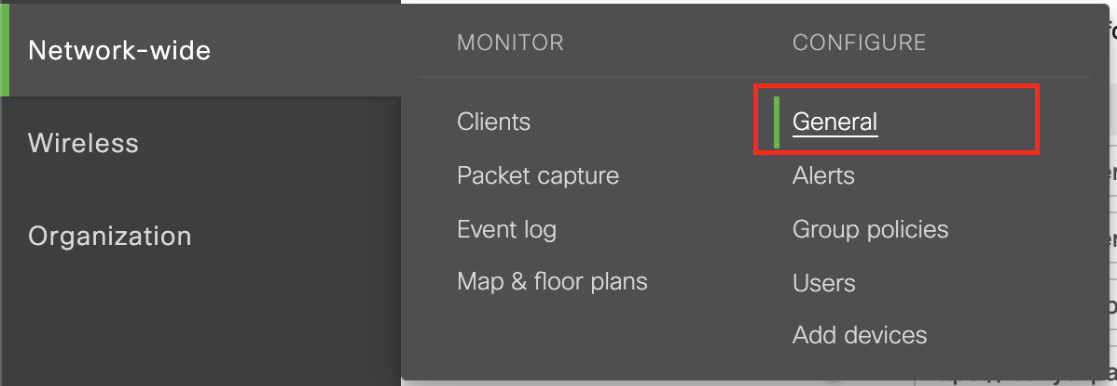

a. Click Network-wide > General menu

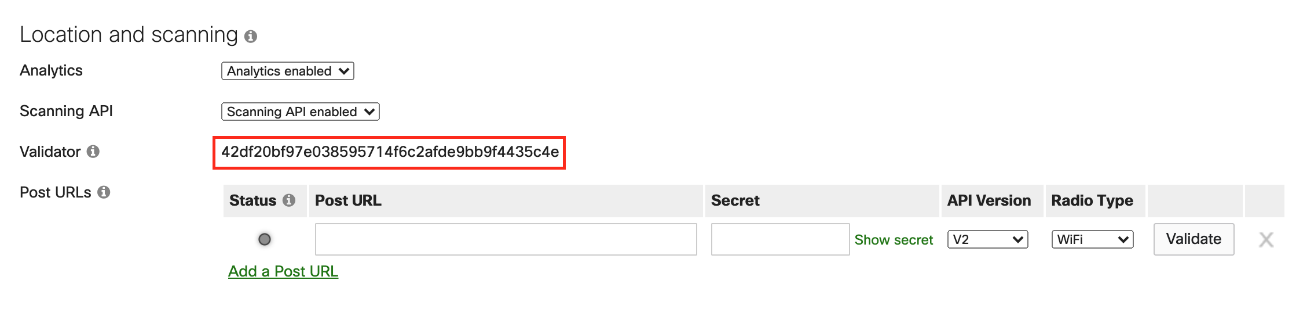

b. Scroll down to "Location and scanning" section

Select Analytics enable in the "Analytics" options. Then select Scanning API enabled in "Scanning API" options

3. Validate the API Key

Validate the API Key from IPERA STARLING

a. Select Settings > System Settings > Advanced

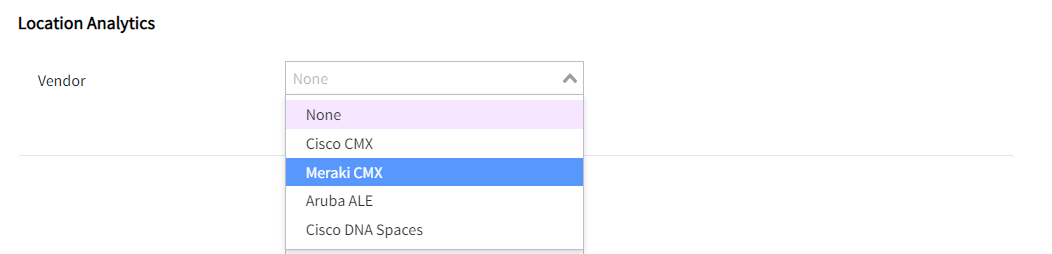

b. Select Meraki CMX from “Location Analytics” section

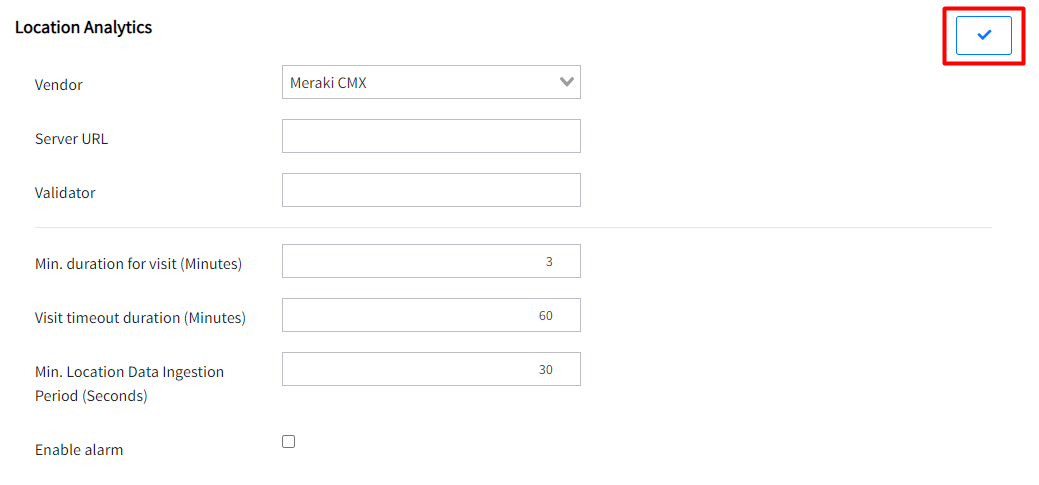

c. Fill the fields and then click to save

4. Enter the Provided Values

Click the Add a Post URL link and enter "Post URL" and "Secret" values provided by IPERA

5. Save and Finish

Click the Save button below to update settings
