IPERA Starling - Fortinet – FortiGate (Firewall Mode) Integration

This walkthrough explains how to set up IPERA Starling integration on a FortiGate (using either a physical or VLAN interface). This applies if you are running Wi-Fi access points from a third-party vendor or if you want to extend the captive portal feature to wired clients.

⚠️ For a seamless login experience, make sure to upload a valid and trusted SSL certificate to your FortiGate controller.

---

Step 1 – Configure IPERA RADIUS Servers

1. Log in to the FortiGate admin portal.
2. Navigate to User & Device → RADIUS Servers → Create New and enter the following:
   • Name: ipera_radius_srv
   • Authentication Method: Default
   • Primary IP/Name: ip address of the radius server 01
   • Secondary IP: ip address of the radius server 02
   • Shared Secret: Provided by IPERA Support Team
   • Save your settings.

RADIUS accounting configuration can be done via FortiGate CLI Level. Use the following commands

Code for RADIUS Configuration

 config user radius
      edit <NAME>
            set server <RADIUS_SERVER_IP_ADDRESS>
            set secret  ENC <SHARED_SECRET>
            set acct-interim-intervel 180
            set radius-port 1812
            set acct-all-servers enable
            config accounting-server
                    edit <ID>
                             set status enable
                             set server  <RADIUS_SERVER_IP_ADDRESS>
                             set secret  ENC <SHARED_SECRET>
                             set port 1813
                   next
           end
      next
end

3. Go to User & Device → User Groups → Create New:

• Name: ipera_radius_group
• Type: Firewall
• Remote Groups: Add ipera_radius_srv
• Save the configuration.

---

Step 2 – Activate Captive Portal on the Interface

If you’re not using FortiAP devices, the captive portal can be applied directly on a FortiGate interface (physical or VLAN).

🔹 Because enabling captive portal forces authentication on all traffic through the interface, it’s best practice to dedicate a separate interface or VLAN for guest users.

1. Go to Network → Interfaces and edit the Guest interface.
2. In the Network settings section, enable Security Mode:
   • Security Mode: Captive Portal
   • Authentication Portal: External
   • Enable Accounting and HTTPS
   • Portal URL: ipera_captive_portal
   • User Access: Restrict to group → ipera_radius_group
   • Exempt Destinations: Create an FQDN object for *.iperawifi.com
   • Redirect After Login: ipera_captive_portal
   • Save the changes.

---

Step 3 – Set Up Security Policies

To allow unauthenticated devices to reach the captive portal, you must configure specific firewall policies.

1. Navigate to Policy & Objects → IPv4 Policy.
2. Create the necessary rules in the required order to ensure unauthenticated users can access the IPERA portal

---

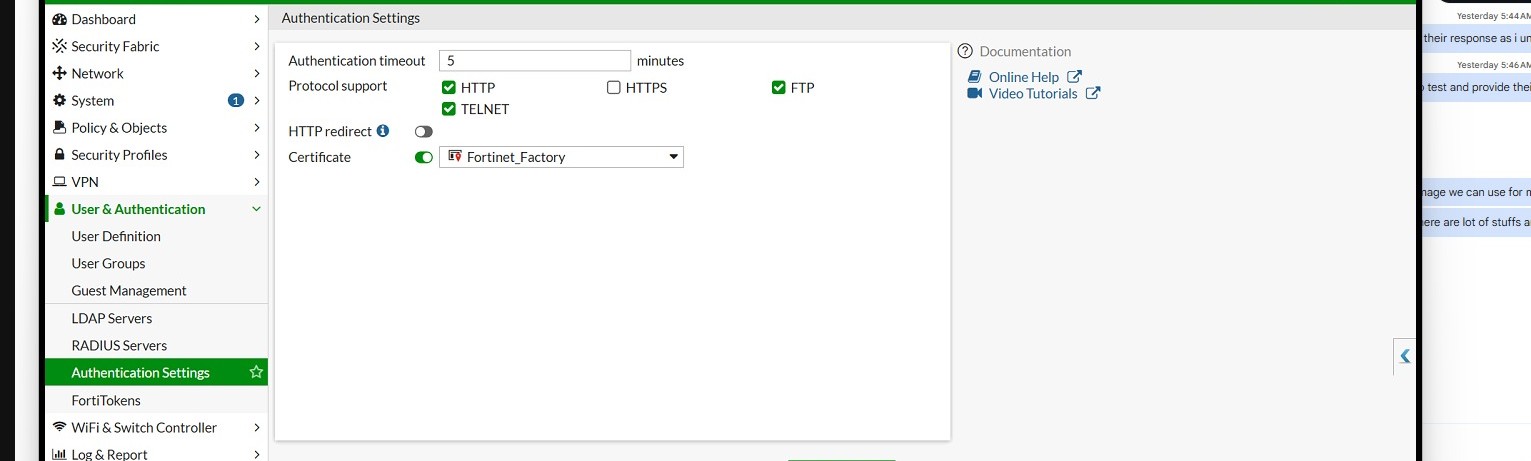

Step 4 – To Avoid Web Browser Warning

Go to Authentication Settings > Disable Protocol Support HTTPS > Disable HTTP Redirect

Parameters for the Configuration

For AWS:

IPERA Radius IP Address (Primary): 35.156.39.198

IPERA Radius IP Address (Secondary): 35.156.23.166
Shared Secret: (IPERA will communicate it)
Authentication Port Number: 1812
Accounting Port Number: 1813

Portal URL: https://engage.iperawifi.com/onboarding
Redirect After Login: https://engage.iperawifi.com/onboarding?auth=success

For Azure:

IPERA Radius IP Address (Primary): 20.174.25.122

IPERA Radius IP Address (Secondary): 20.174.42.3
Shared Secret: (IPERA will communicate it)
Authentication Port Number: 1812
Accounting Port Number: 1813

Portal URL: https://me.iperawifi.com/onboarding
Redirect After Login: https://me.iperawifi.com/onboarding?auth=success
