IPERA Starling - Cloud Deployment Guidelines

Purpose

This document shows what are the technical requirements that need to be prepared in the customer’s side for the IPERA Starling System to be deployed in the cloud architecture.

Cloud Setup Requirements

The following architecture is applicable for all Wireless Controllers that are hosted on cloud.

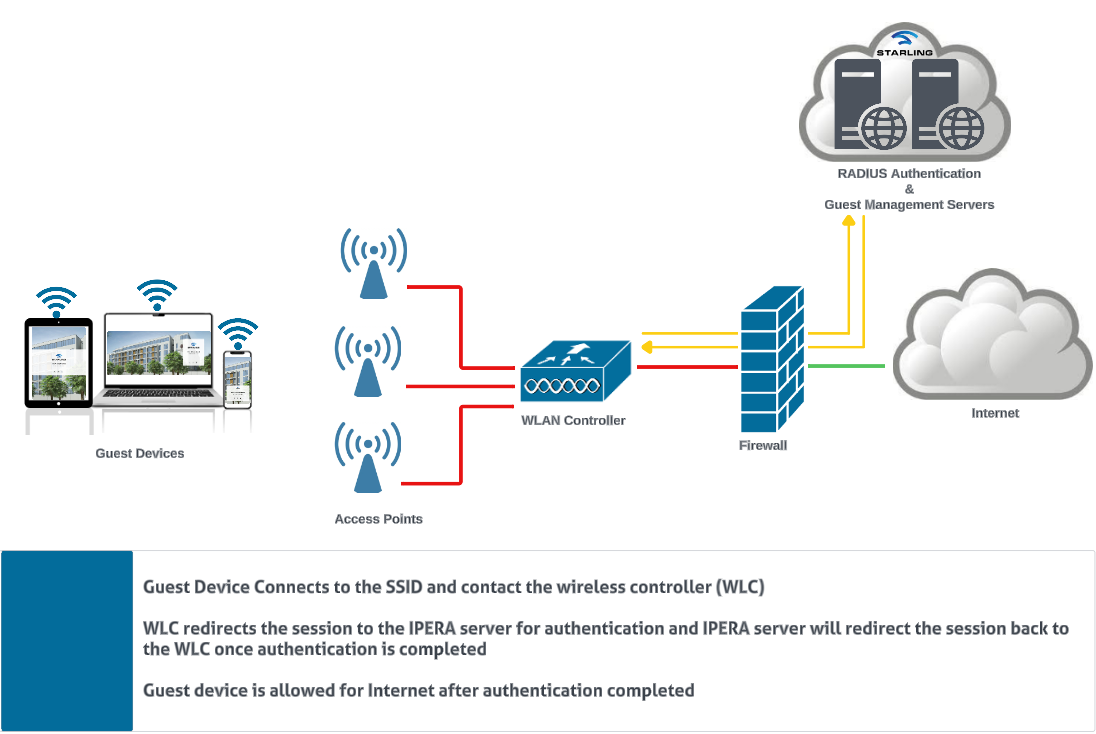

System Architecture

Ports that need to be enabled at Customer Network & Firewall

Between		Protocol	Port Number
End User / Client Device	IPERA Cloud (engage.iperawifi.com)	TCP	80/443
Wireless Controller	35.156.39.198 35.156.23.166 18.185.206.50	UDP	1812/1813/3799/1700
Location Engine (MSE, CMX, ALE, etc.)	IPERA Cloud (engage.iperawifi.com)	TCP	80/443

Ports that need to be enabled at Customer Network & Firewall (Radsec)

Between		Protocol	Port Number
End User / Client Device	IPERA Cloud (engage.iperawifi.com)	TCP	80/443
Wireless Controller	35.156.39.198 35.156.23.166	TCP	2083
Location Engine (MSE, CMX, ALE, etc.)	IPERA Cloud (engage.iperawifi.com)	TCP	80/443

For hospitality clients if the Oracle Opera PMS integration is required then the following Virtual / Physical entry level server resources should be provided for the IPERA Starling PMS Agent

Disk Space for Guest Database Storage	Local Server Drive	CPU Cores	RAM
100 GB	20 GB	2 cores	8 GB

Other Notes

SMTP Configurations	SMTP configuration is required for the IPERA Starling system to sends system alerts and promotional emails. SMTP can be configured with customer own settings can use the IPERA default SMTP settings
Install SSL Certificate in controller	It is recommended to install an SSL Certificate on Wireless LAN Controllers to avoid seeing the security warning.

Checklist

Following is the checklist that should be executed or information to be provided by partner/customer engineers to IPERA engineers. Please fill the form and send it back to IPERA engineers.

#	Topic	Owner	Status (Pending/Done)	Notes/Comments
1	Ports are open in Firewall	Partner
2	Provide SMTP connection information for alerts. Enable the Relay Access to IPERA servers	Partner
3	SSL Certificate is enabled on Wireless LAN Controllers to avoid seen the security warning	Partner
4	Provided the list of MAC Addresses for both Wireless LAN Controllers and APs	Partner



Terms and Conditions

Please refer to the End-user Wi-Fi Service Privacy and Terms of Use for details on standard Terms & Conditions.

For more information:

Please contact your IPERA representative or send an email to [e-mail]
