IPERA Starling - Cisco 9800 WLC Integration with MAC Filtering

NOTE: We highly recommend you use 9800 WLC IOS-XE Gibraltar v16.XX or above as this includes many stability and feature improvements.

Purpose

This guide shows how to configure a Cisco Systems WLC Controllers in the "Controller - AP" architecture, in order to use each Access Point as a Hotspot. Please use parameters under “Parameters for the Configuration” at the end of this document.

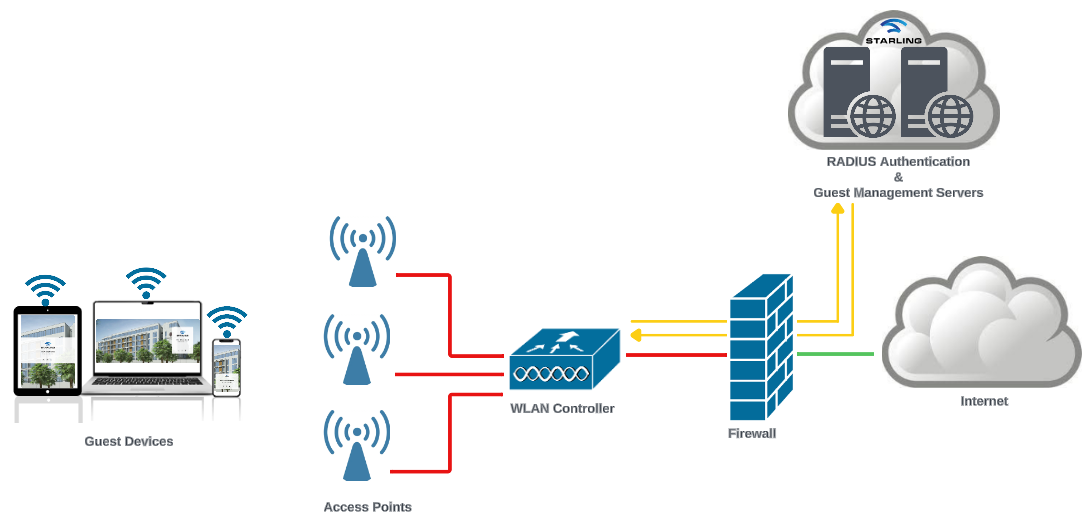

Architecture

Cisco WLAN Controller version

9800 WLC IOS-XE Gibraltar v16.XX or above

Cisco WLAN Controllers Configuration Steps

This article applies to all Wi-Fi Cisco controllers. The configuration procedure has been performed and tested for the version 9800 WLC IOS-XE Gibraltar v16.XX.

To correctly integrate a Cisco controller with the Solution, it is necessary that the controller:

• is connected to the Internet
• is reachable in the network
• correctly assigns IP addresses to APs
• has both management port and service port correctly set

To get a better functioning experience, we suggest loading all necessary certificates to the controller.

AAA Configuration on 9800 WLC

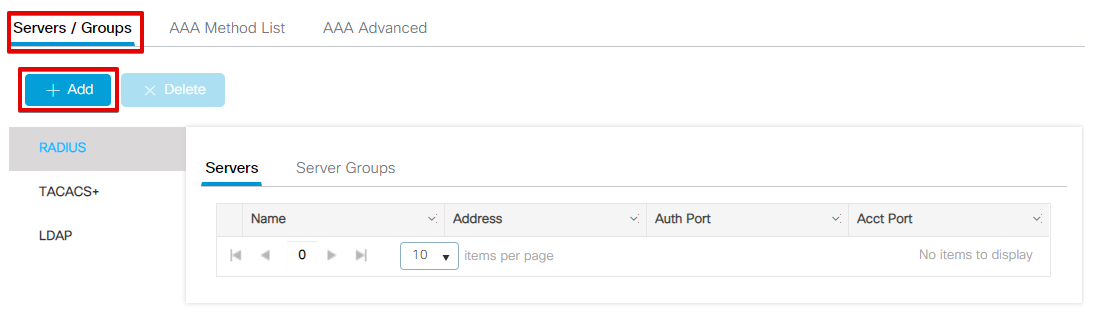

Navigate to Configuration > Security > AAA > Servers / Groups > RADIUS > Servers

Click + Add and enter the RADIUS server's information.

• Enter the name for the radius server
• Enter the  IP Address of the radius server (find the details in the "Parameters for the Configuration" section at the end of this document)
• Enter Secret Key: This will be provided by IPERA Engineers
• Enter the radius authentication port (1812)
• Enter the radius accounting port (1813)
• Enable the Support for CoA

Select the Server Groups tab and click on the Add.

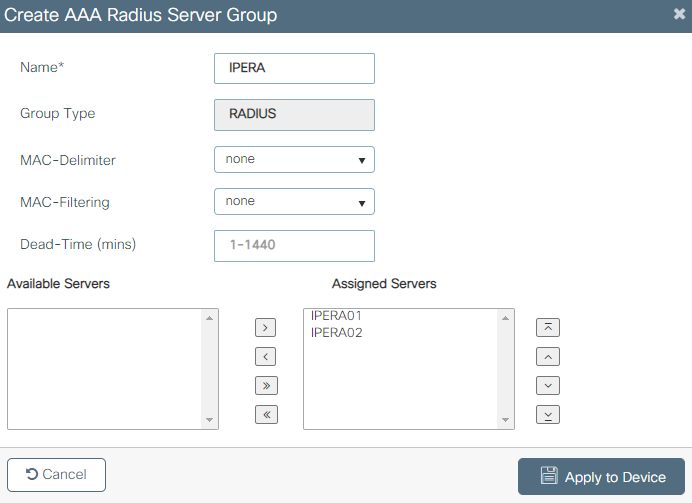

Enter the name for the server Group and assign the IPERA servers to it.

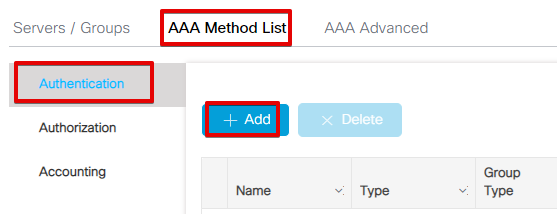

To create an authentication method list navigate to Configuration > Security > AAA > AAA Method List > Authentication > + Add

Click on the Add and enter the following

• Enter the Method List Name
• Select the login as a Type
• Select the group as a Group Type
• Assign the IPERA server group to the list

**If you are enabling the MAC filtering,

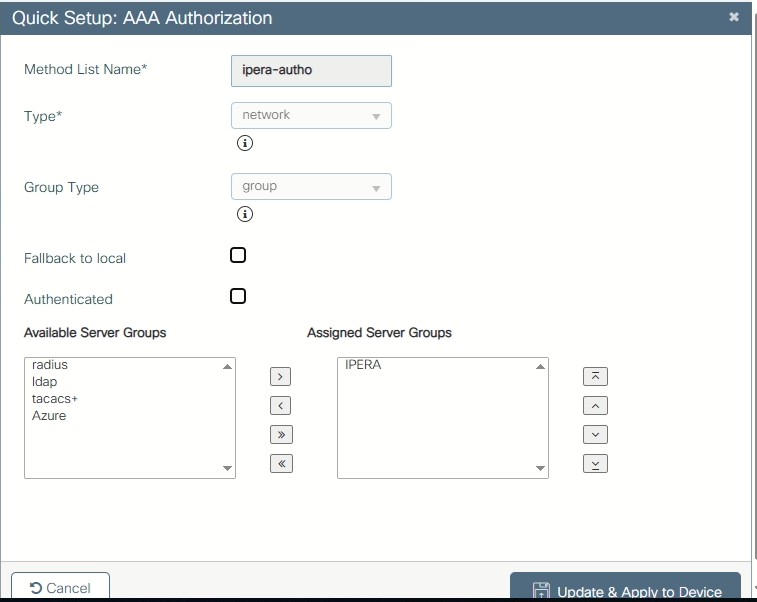

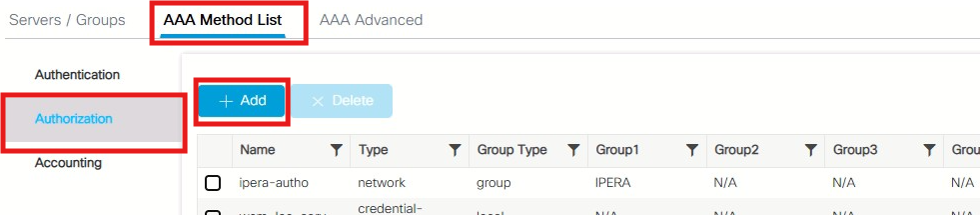

 To create an authorization method list, select the Authentication section and click on the Add.

Click on the Add and enter the following

• Enter the Method List Name
• Select the type as a 'Network'
• Assign the IPERA server group to the list

•

  **

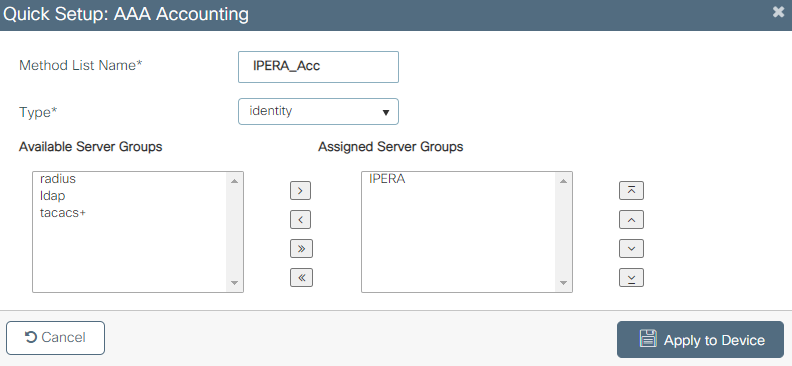

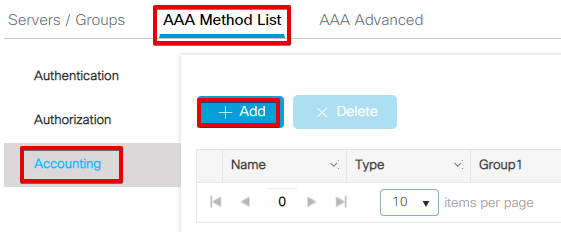

To create an accounting method list select the accounting section and click on the Add.

• Enter the Method List Name
• Select the identity as a Type
• Assign the IPERA server group to the list

In order to use Radius Accounting in Anchor-Foreign deployments, please do the following.

1. WLAN -> Edit 'SSIDNAME' -> Security -> AAA Servers
2. Disable the radius accounting servers in the anchor controller and keep only radius authentication servers
3. Disable the radius authentication servers in the foreign controller and keep only radius accounting servers

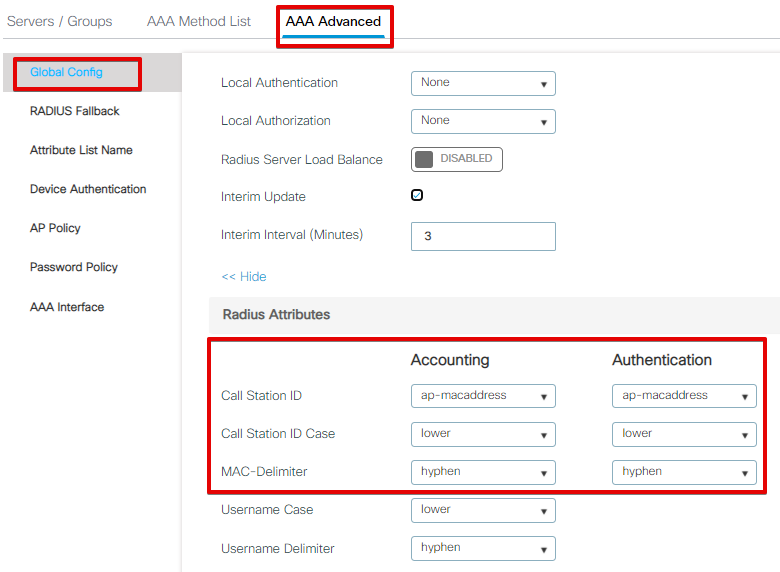

Navigate to the Configuration > Security > AAA > AAA Advanced

Enable the Interim Update and 3 minutes as a value

Change Caller Station ID, Caller Station ID Case & Mac Delimiter under the Global Config > Radius Attributes.

Add Web Auth Parameters

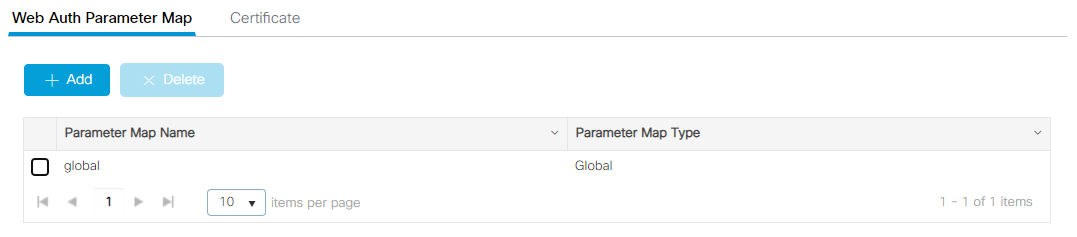

To configure the Web Auth parameters navigate to the Configuration > Security > Web Auth.

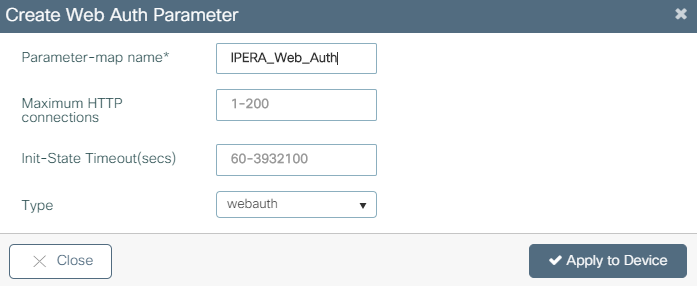

Click on Add to create new Parameter Map

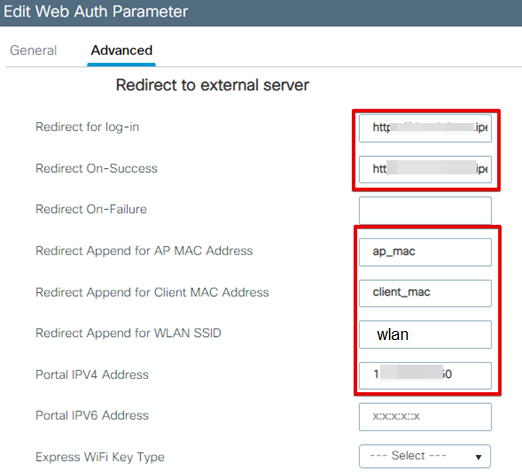

Click on the parameter map configured in the previous step, navigate to the Advanced tab, and enter the Redirect for log-in URL, Redirect for Success URL, Append for AP MAC Address, Append for Client MAC Address, Append for WLAN SSID and portal IPv4 Address.

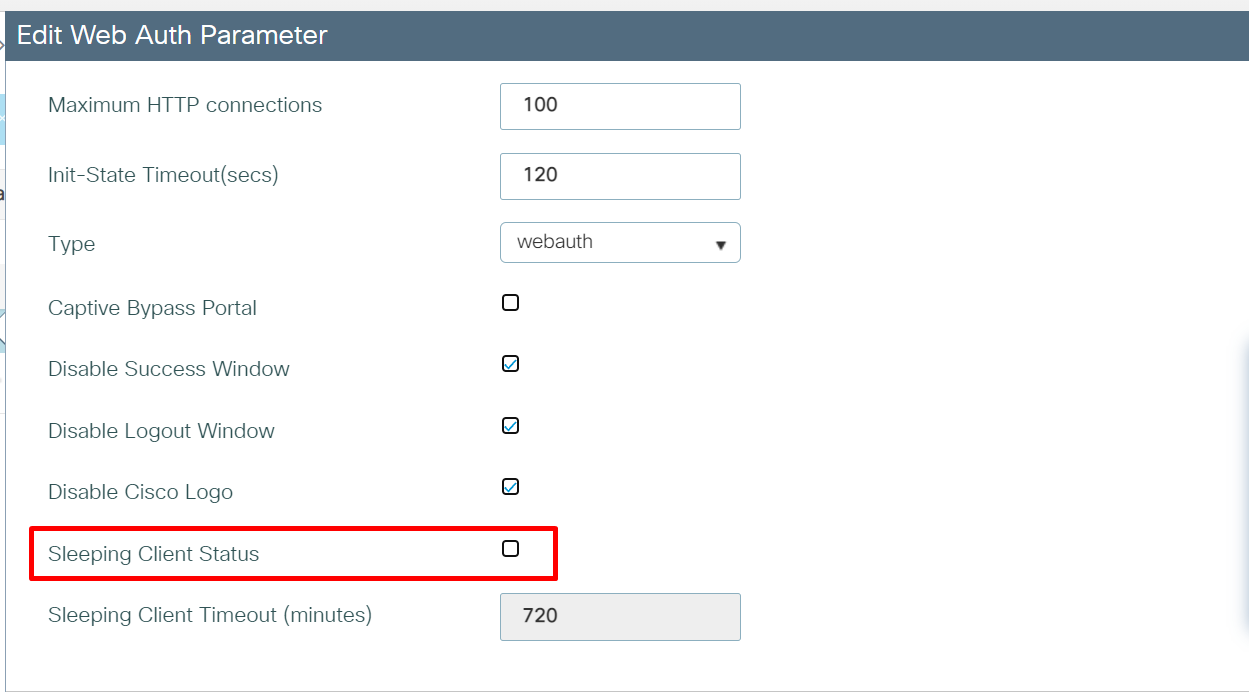

Keep “Sleeping Client Status” disable

WLAN Configuration

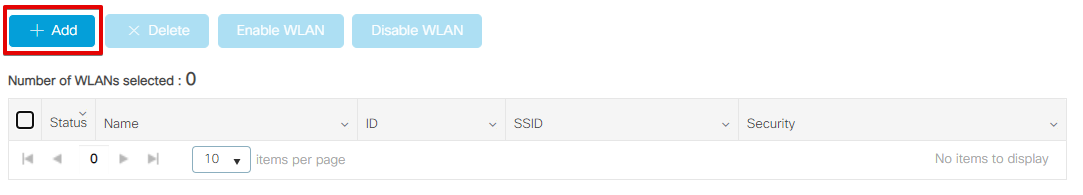

To create a new WLAN navigate to Configuration > Tags & Profiles > WLANs > + Add

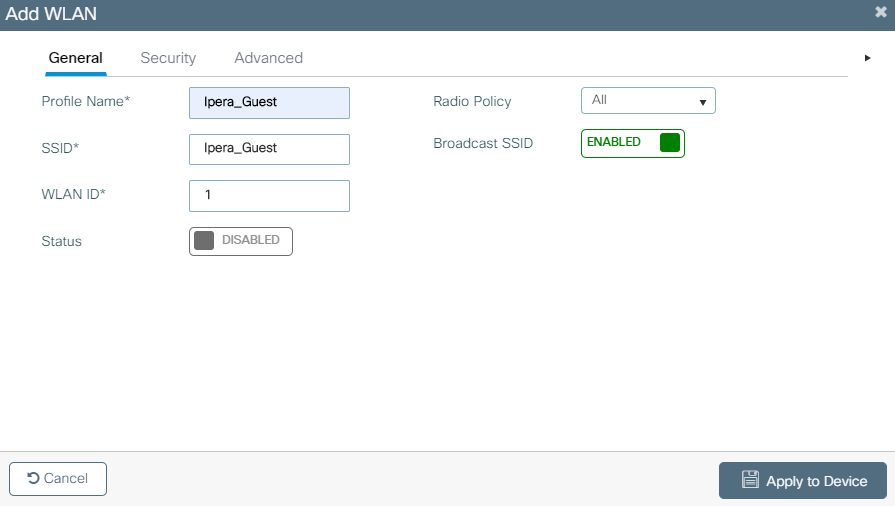

Define the Profile Name and SSID

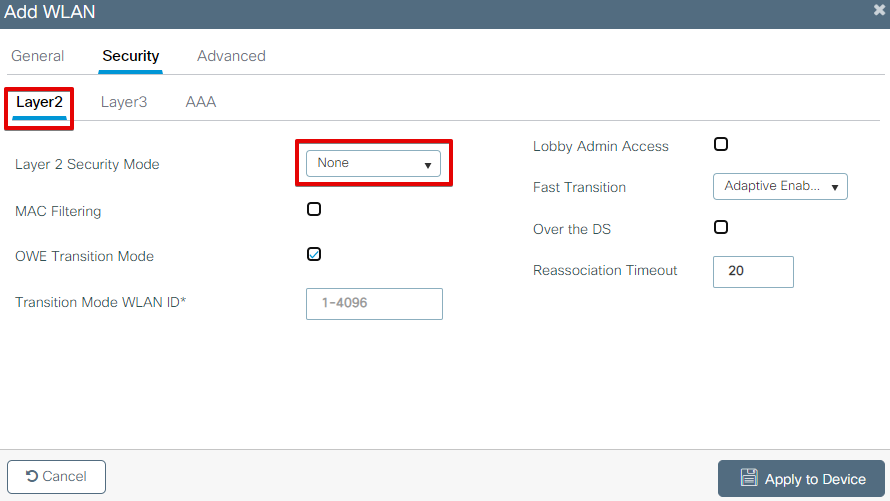

Navigate to Security > Layer2 and select none for Layer 2 Security Mode

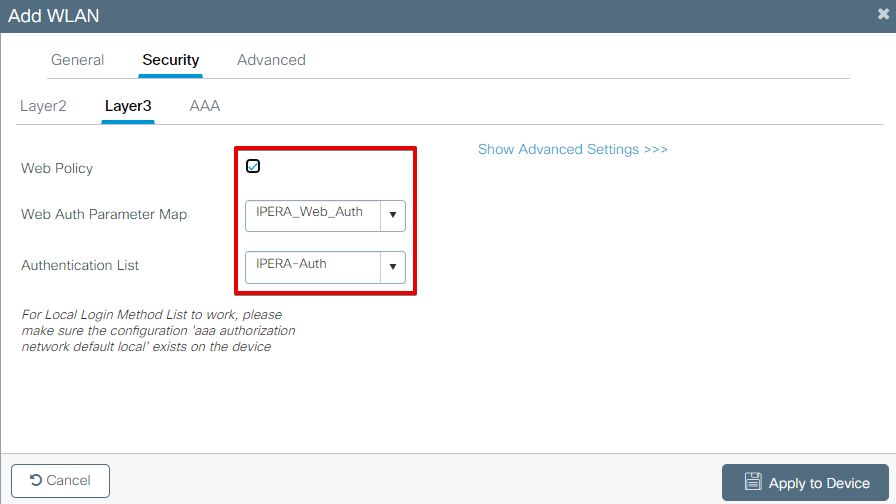

Navigate to Security > Layer3 and enable the Web Policy option.

Select the Web Auth Parameter Map & Authentication List.

 **If you are enabling the MAC filtering,

The following information must be configured in Layer 2 and Layer 3:

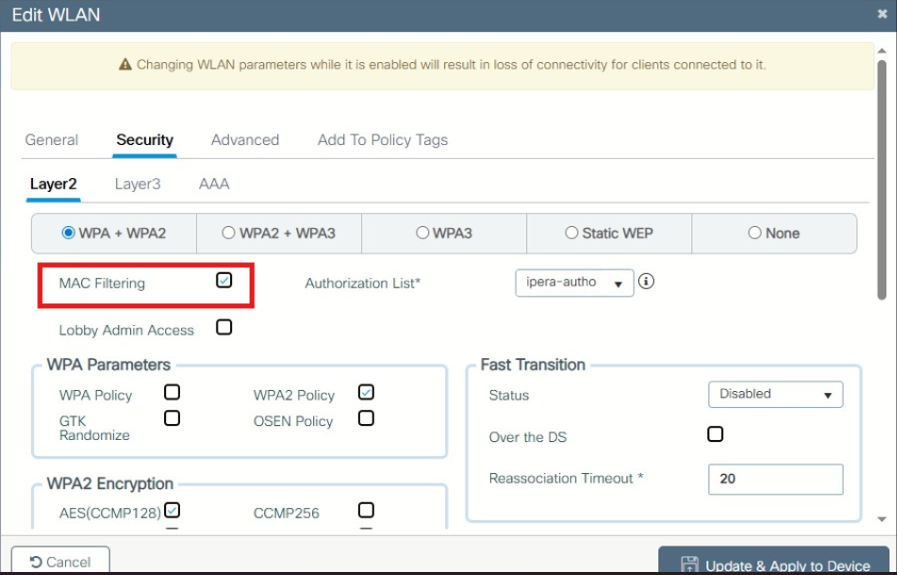

1. Navigate to Security > Layer2

• Enable 'MAC Filtering'

• Select the Authorization List that created.

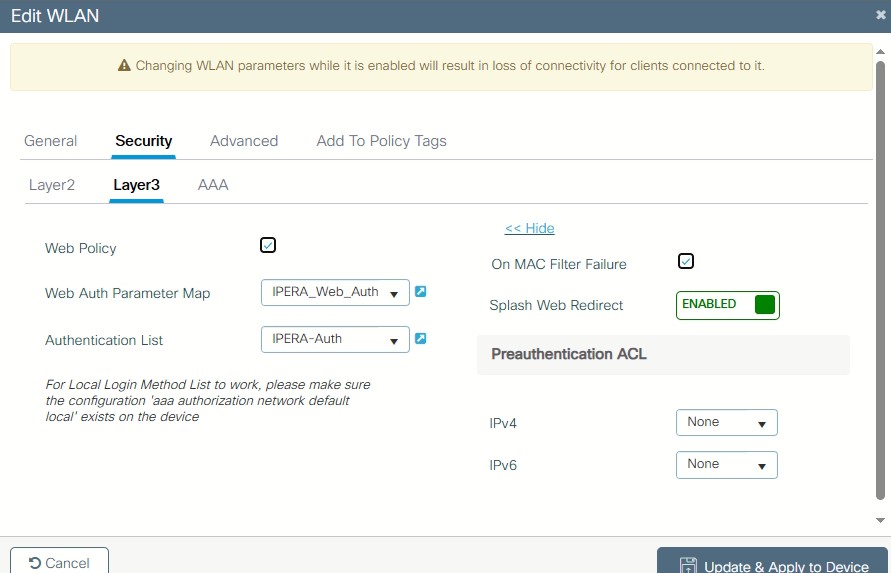

2. Navigate to Security > Layer3 > Advanced settings

• Enable 'On MAC Filter Failure'

• Enable 'Splash Web Redirection'

 **

Create URL Filter

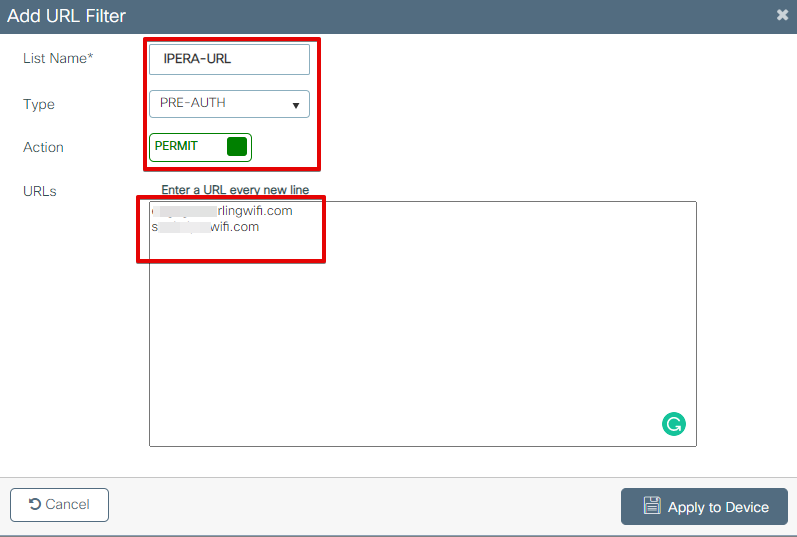

To create a new URL filter navigate to Configuration > Security > URL Filters > + Add

• Enter the Method List Name
• Select PRE-AUTH as a Type
• Select PERMIT as an Action
• Define the required URLs in the URLs sections

It is mandatory to add the following domains to ACL

• engage.iperawifi.com
• me.iperawifi.com
• static.iperawifi.com

If you wish to support social network logins, you need to add rules for domains below for each network you plan to support

Microsoft 365 (*)	login.microsoftonline.com	Google	accounts.google.com
	aadcdn.msauth.net		www.google.com
	login.live.com		fonts.gstatic.com
	akamaihd.net		play.google.com
	aadcdn.msftauth.net		ssl.gstatic.com
Facebook	www.facebook.com		accounts.youtube.com
	www.facebook.net		accounts.google.com
	static.xx.fbcdn.net	TikTok (**)	*.tiktok.com
Twitter	api.twitter.com		firebaseinstallations.googleapis.com
	abs-0.twimg.com		storage.googleapis.com
	pbs.twimg.com		*.ibytedtos.com
LinkedIn	www.linkedin.com		*.tiktokv.com
	static.licdn.com		open-api.tiktok.com
	media.licdn.com		www.tiktok.com
	ponf.linkedin.com		*.ttwstatic.com
	platform.linkedin.com		*.tiktokcdn.com
Apple	www.apple.com
	appleid.apple.com
	appleid.cdn-apple.com
	is4-ssl.mzstatic.com

(*) Please refer to the below URL if you wish to use Microsoft login method
https://learn.microsoft.com/en-us/azure/active-directory/manage-apps/review-admin-consent-requests

(**) Google, Facebook, Twitter, and Apple should be also added for TikTok

Important Note: URL Filtering Limitations

The Cisco Catalyst 9800 (IOS XE 17.x) enforces strict limits on the number of entries per URL filter list. Any entries configured beyond these limits will be ignored by the system, even if the configuration is accepted.

• Standard Limit: Maximum of 20 entries (if no wildcards are used).

• Wildcard Limit: Maximum of 16 entries (if the list contains any wildcard domains, e.g., *.example.com).

Action Required: Ensure your URL lists strictly adhere to these counts to guarantee all rules are applied.

Create Policy

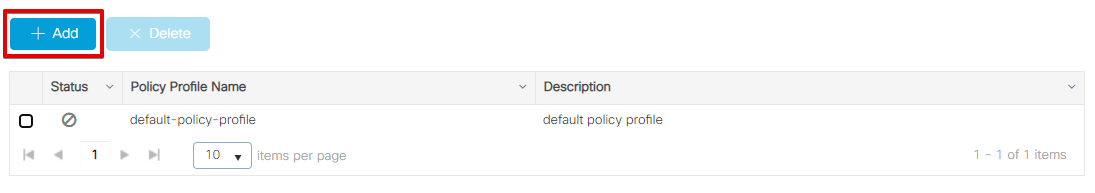

To create a new policy navigate to Configuration > Tags & Profiles > Policy > + Add

Define a name for the policy and make the status enabled

Navigate to the Access Policies tab; Select the appropriate VLAN and Pre Auth URL Filter

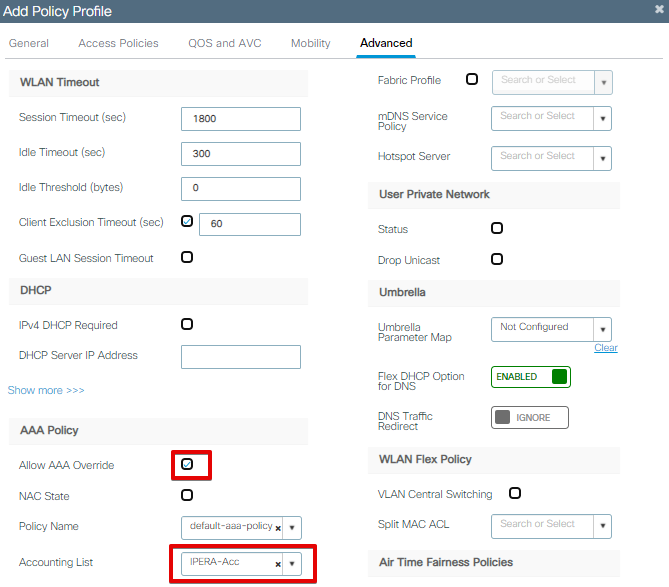

Navigate to the Advance tab, enable the Allow AAA Override, and select Accounting List

Create Policy Tag

To create a new policy navigate to Configuration > Tags & Profiles > Tags > Policy > + Add

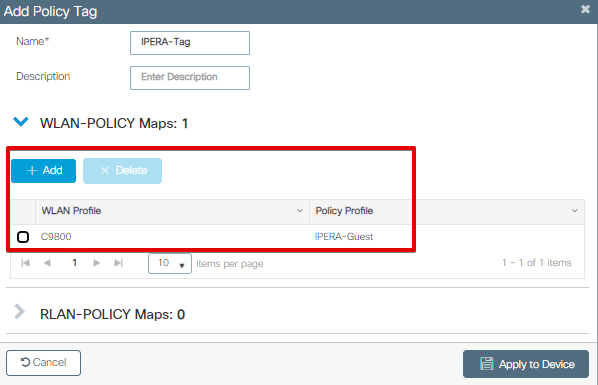

Click on the Add and select the WLAN Profile and Policy Profile

Map the Policy Tag to AP

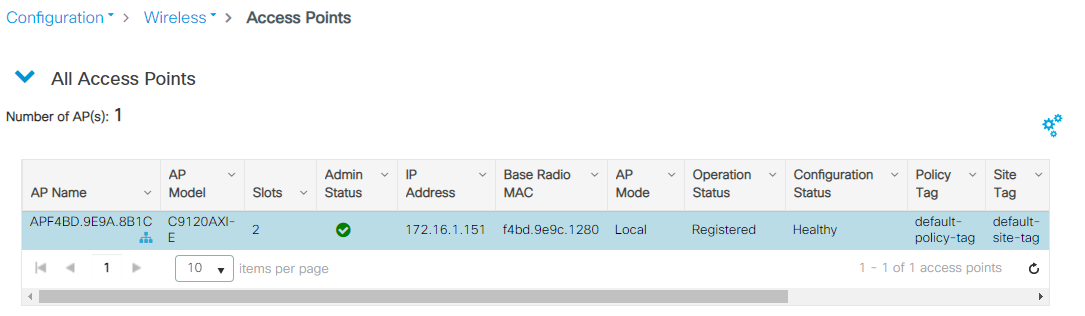

To map the new policy tag to access point navigate to Configuration > Wireless > Access Points

Select the Policy and click on the Update & Apply to Device

Parameters for the Configuration

For AWS:

IPERA Radius IP Address (Primary): 35.156.39.198

IPERA Radius IP Address (Secondary): 35.156.23.166
Shared Secret: (it will be communicated by IPERA)
Authentication Port Number: 1812
Accounting Port Number: 1813

Redirect URL after login: https://engage.iperawifi.com/onboarding
External Webauth URL: https://engage.iperawifi.com/onboarding

For Azure:

IPERA Radius IP Address (Primary): 20.174.25.122

IPERA Radius IP Address (Secondary): 20.174.42.3
Shared Secret: (it will be communicated by IPERA)
Authentication Port Number: 1812
Accounting Port Number: 1813

Redirect URL after login: https://me.iperawifi.com/onboarding
External Webauth URL: https://me.iperawifi.com/onboarding

Any changes on the above parameters and values will be communicated with IPERA customers in advance.
