Locations

Locations are defined in the system to provide different onboarding experiences to users based on the location. Locations can be further divided into buildings, floors, and zones. Locations can be created manually or imported from the location engine (e.g.: Cisco CMX, Cisco Spaces, Meraki CMX, Aruba ALE or Aruba Central).

Click from the top right to import a location.

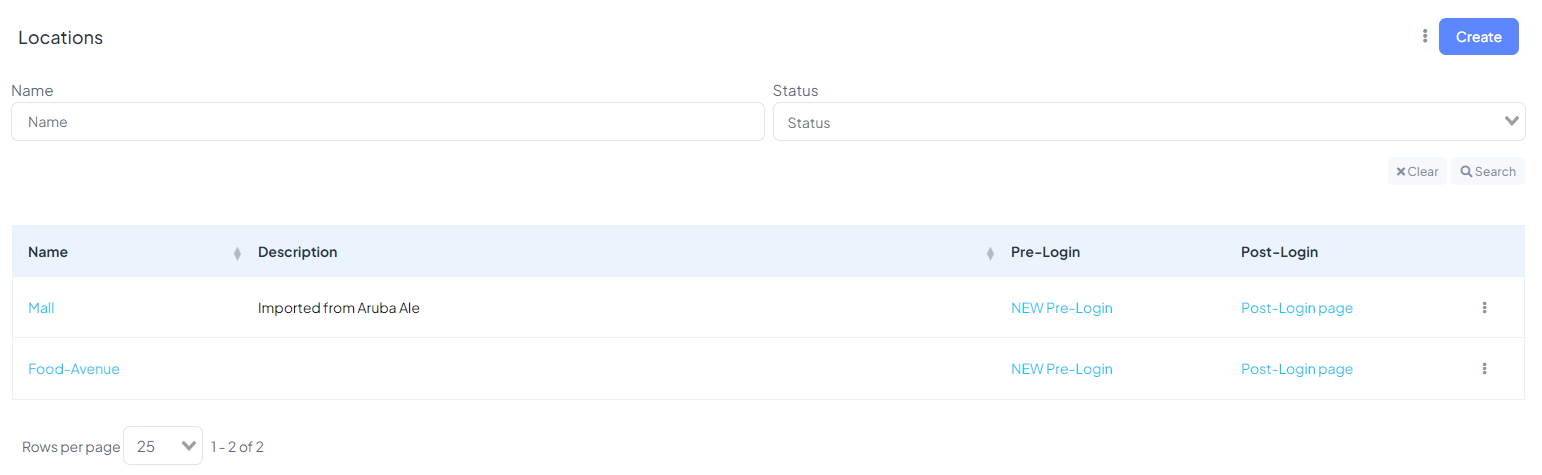

To manage Locations, select Settings > Locations.

Click on the icon to get the following options menu on each location.

• Edit: Edit the selected location settings
• Location URL: Generates a URL to be used for location engine (Cisco CMX or Meraki CMX)
• Devices: Access points list of the specific location

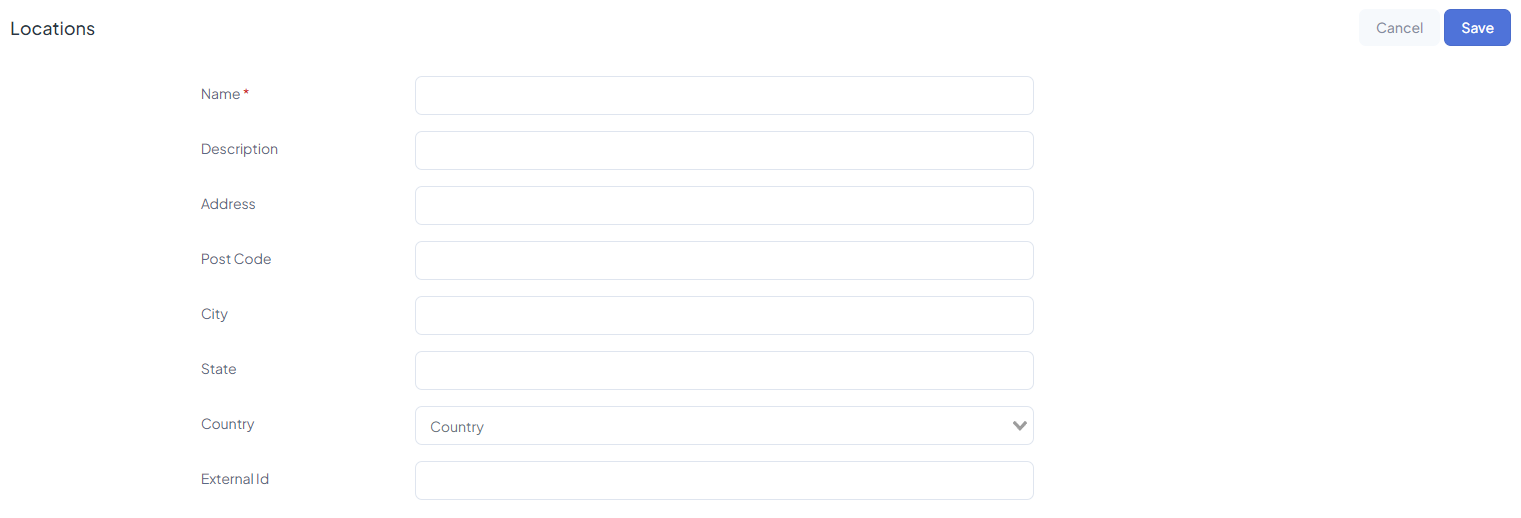

To add a location, click on the "Create" button, and the following form will appear:

• Name: Type the name of the location
• Description: Type to describe the location
• Address: Type the address of the location
• Post Code: Type the postal code of the location
• City: Type the city of the location
• State: Type the state of the location
• Country: Select the country of the location

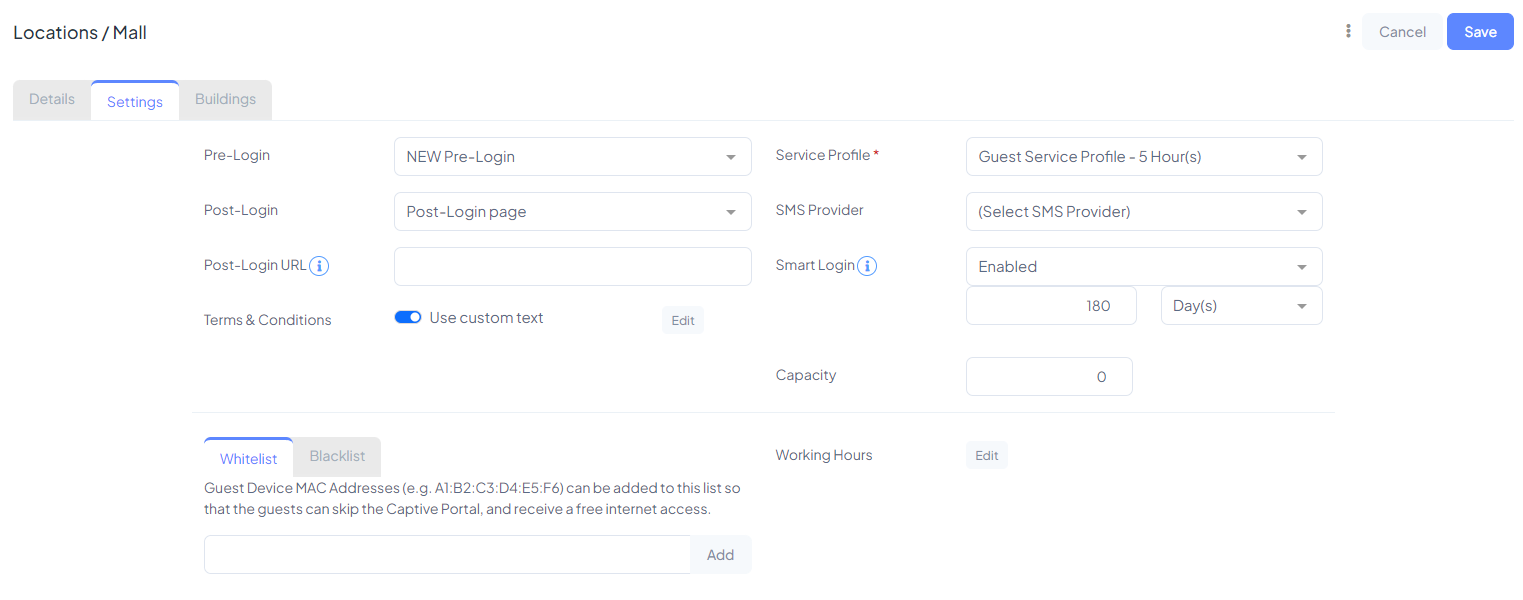

Click on the “Save” button to save after filling the details. After creating a location, fill the fields in the Settings tab that pop ups.

Click to delete the location.

• Pre-Login: Select the splash page that will be displayed on the guest device after connecting to the Wi-Fi system
• Post-Login: Select the splash page that will be displayed on the guest device after successfully authenticated connect to the Wi-Fi system
• Post Login URL: Type the URL for the page appears after successful login, instead of the Post-Login page (optional)
• Terms & Conditions: Enable to use a custom text for legal Terms & Conditions that will appear to guests on the Wi-Fi splash portal for the specific location. If disabled, the Terms & Conditions text that has been set from the Tenant Profile Settings will be displayed. English Terms & Conditions are mandatory. If Terms & Conditions in other languages are not defined, the system will display the English version.
• Service Profile: Select an available service profile to be used for that location
• SMS Provider: Select an SMS provider that will be used for the specific location in case SMS-based login is enabled
• Smart Login: Enable or disable the feature that enables the guests to automatically connect to the Wi-Fi without going through the login process after the first login. After enabling, determine how long after the guest should login again
• Capacity: Type the maximum number of people that the location can have
• Whitelist: Type the MAC address of the device to skip the captive portal and connect to the internet for the specific location
• Blacklist: Type the MAC address of the device for blocking from connecting to the internet for the specific location

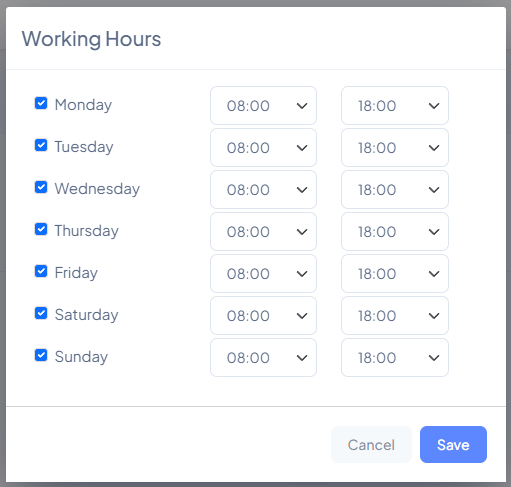

• Working Hours: Edit the working hours of the specific location


Click “Save” to finish editing working hours.

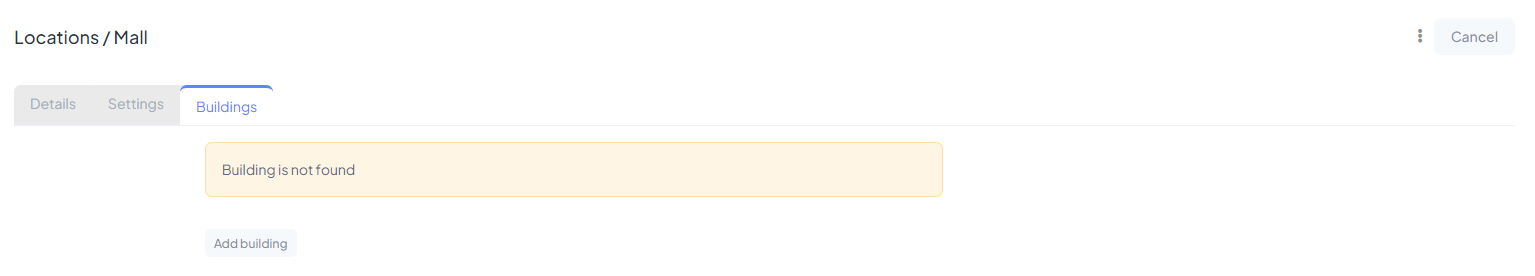

Locations can be further divided into Buildings and can be further divided into Floors. These can be added and edited in the Buildings tab.

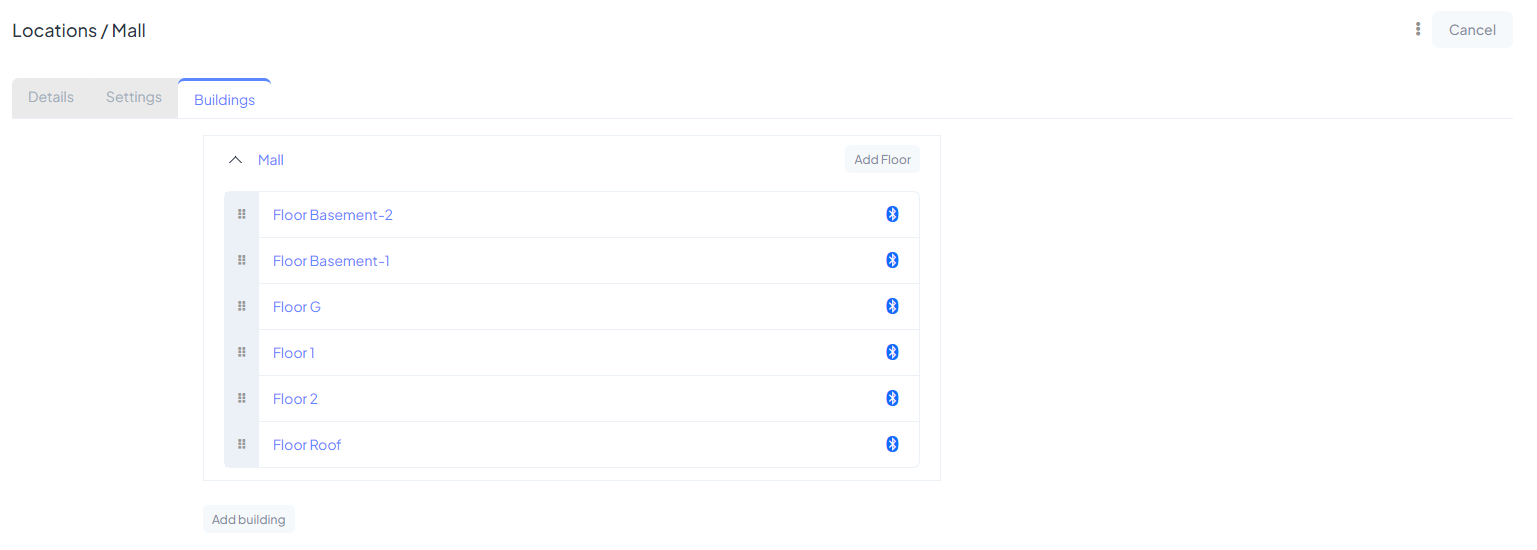

If the location is already imported from the location engine, the buildings and floors can be seen here.

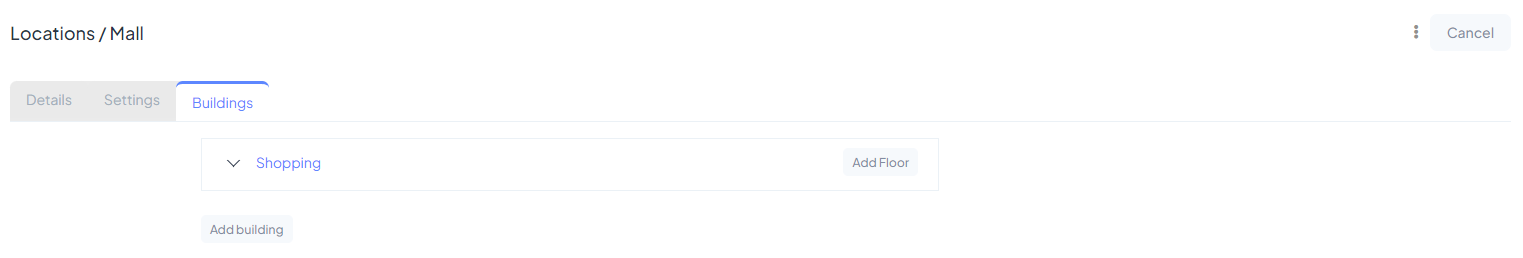

To add a new building to the specific location, click “Add Building”.

After filling the fields, click “Save” to finish creating a new building.

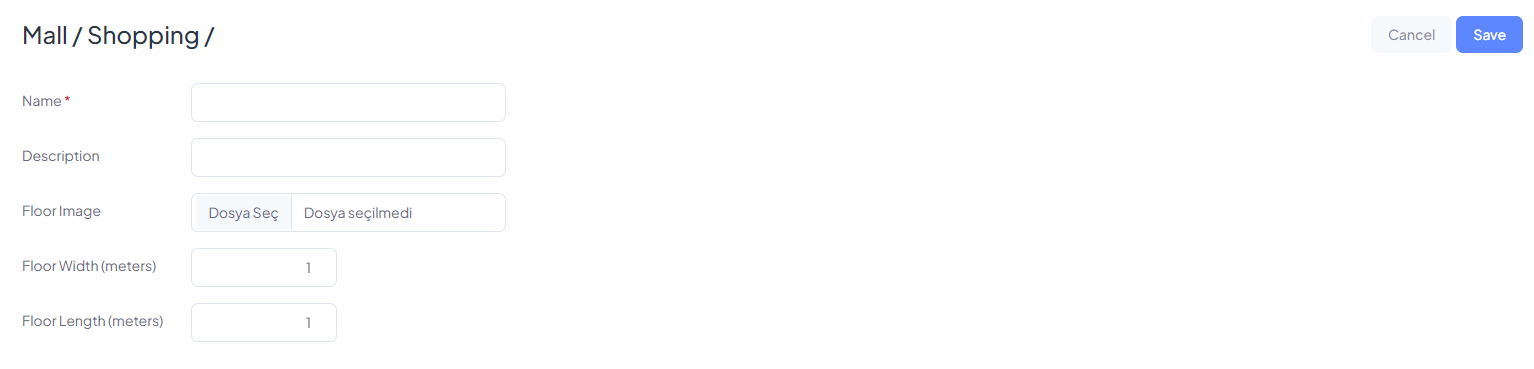

To add a new floor to the specific building, click “Add Floor”.

After filling the fields and uploading the map of the floor, click “Save” to finish creating a floor.
